High-Center height Pillow Block Bearing Unit is a type of bearing unit. This bearing unit is also a combination of PH bearing housing and pillow block bearing. UCPH bearing housing is much higher than other types of bearing housing, mainly used in special installation environment. The bearing housing is mainly made of cast iron, and stainless steel and plastic materials are used less than cast iron. The pillow block bearing is the same with the other types of mounted bearings unit.

UCPH Standard duty, Wider inner ring bearing, Setscrew locking, Cast gray iron housing.

Cast DUCTILE iron housing available upon requested.

Unit No.

Shaft Dia

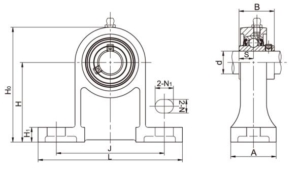

Dimensions(mm)

Bolt Size (mm)

Weight (kg)

d

H

L

J A N N1 H1 Ho B

s

(in) (mm)
UCPH201   12 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH201-8 1/2   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH202   15 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH202-9 9/16   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH202-10 5/8   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH203   17 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH203-11 11/16   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH204   20 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
 UCPH204-12 3/4   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH205   25 80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH205-14 7/8   80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH205-15 15/16   80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH205-16 1   80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH206   30 90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-17 1-1/16   90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-18 1-1/8   90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-19 1-3/16   90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-20 1-1/4   90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH207   35 95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-20 1-1/4   95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-21 1-5/16   95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-22 1-3/8   95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-23 1-7/16   95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH208   40 100 178 137 70 17 21 20 150 49.2 19.0 M14 2.70
UCPH208-24 1-1/2   100 178 137 70 17 21 20 150 49.2 19.0 M14 2.70
UCPH208-25 1-9/16   100 178 137 70 17 21 20 150 49.2 19.0 M14 2.70
UCPH209   45 105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH209-26 1-5/8   105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH209-27 1-11/16   105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH209-28 1-3/4   105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH210   50 110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH210-30 1-7/8   110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH210-31 1-15/16   110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH210-32 2   110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH211   55 120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH211-32 2   120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH211-34 2-1/8   120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH211-35 2-3/16   120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH212   60 130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
UCPH212-36 2-1/4   130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
UCPH212-38 2-3/8   130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
UCPH212-39 2-7/16   130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
