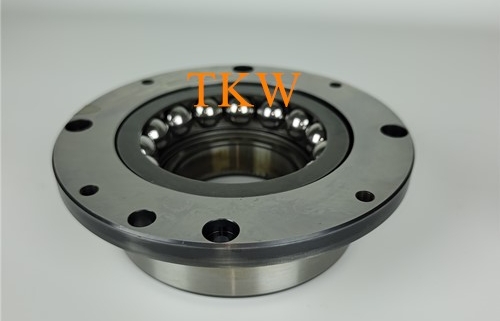

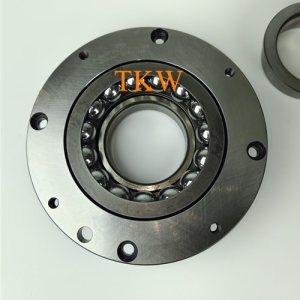

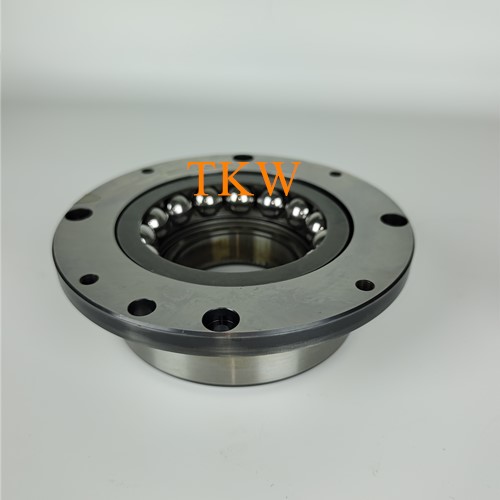

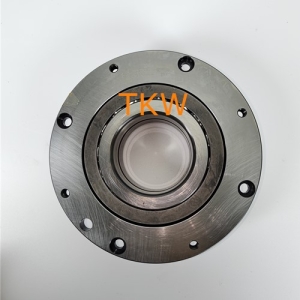

Double Row Angular contact ball bearings F-236957-ZKLF INA standard

Type: Double Row angular contact ball bearings,

Designation: F-236957-ZKLF

Feature: With Round Flange.

Dimension: 55X146X44mm

Material: High Quality Special Steel.

Brand: INA

Applications: Beverage canning equipment

Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide or sheet steel cages. Their construction is similar to a pair of single row angular contact ball bearings in an O arrangement but they are narrower to a certain extent.

The bearings are available in open and sealed designs. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Sealed bearings

are maintenance-free and therefore allow particularly economical bearing arrangements.

Due to the raceway geometry and the two rows of balls, the bearing can support forces in both radial and axial directions. They are therefore particularly suitable for use in pumps and

agricultural machinery. Furthermore, double row angular contact ball bearings are used in applications including conveying equipment, packaging equipment, elevators and compressors.

The angular adjustment facility of angular contact ball bearings is very limited. The adjustment angle should not exceed 2.
