FAG 22214-E1-XL Spherical Roller Bearings 70×125×31 mm For Construction Equipment

Detailed Product Description

Place of Origin: Germany
Brand Name: FAG
Certification: ISO9001/TS16949
Model Number: 22214-E1-XL Bearing

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box
Delivery Time: 5 days after confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Pcs/Month

Detailed Product Description

Designation: FAG 22214-E1-XL Dimension: 70×125×31mm
Weight: 1.7 Kg Cage: Pressed steel
Cleance: Normal Seals: Open
Lubrication: Filled To 25 To 45% With LGEP 2 Grease Application: Construction Equipment

Radial Spherical Roller Bearings FAG 22214-E1-XL Bearing made in Germany, It is one kind of spherical roller bearing design. Actually Spherical Roller Bearing also called Self-Aligning Roller Bearings, so it can be named Self-Aligning Roller Bearing FAG 22214-E1L Bearing,  its dimension is 70×125×31mm. it has the different dimension and the a little different design with normal chrome steel NSK 22214 CDE4 bearing. Their Cage can be E/CC/CA such brass or Pressed Steel cage. The chamfer of FAG spherical roller bearings are the same with normal design. it has the lubrication groove and three lubrication holes on the outer ring.

FAG Spherical Roller Bearing 22214-E1-XL Bearing
Principal dimensions 70×125×31mm
Weight 1.6 kg
Basic dynamic load rating-C 213 kN
Basic static load rating-Co 228 kN
Fatigue load limit-Pu 25.5 kN
Reference speed 5000 r/min
Limiting speed 6700 r/min

Double row spherical roller bearing for fan industry need very high quality with continuous, high-speed operation, and it’s easy to heat , meanwhile there are have strictly demand in noise of the bearing, against the operation requirement of fan industry, XRB ( China Bearing Manufacturer ) adapted special design, developed complete series spherical roller bearings for fan industry, noise and longer time service life can be met for fan industry, and also XRB produce high temperature and higher precision bearings upon customers special demand.

FAG Spherical Roller Bearings 22214-E1-XL are a form of self-aligning bearings that utilize two rows of barrel-shaped rollers and a common outer raceway. The spherical roller geometry enables these bearings to support very large radial loads and moderate thrust loads,In contrast to self-aligning ball bearings, Spherical Roller Bearings experience more frictional losses and therefore operate at lower relative speeds. Since Spherical Roller Bearings are self-aligning they can automatically compensate for angular misalignment within a system. In addition, their spherical roller geometry provides them with a high resistance to impact forces and dynamic loads. Misalignments, either from machining errors, assembly errors, deflections, or dynamic loads, are automatically stabilized. Typical uses for Spherical Roller Bearings include agricultural, construction, and mining equipment, marine propulsion, wind turbines, gearboxes, drive shafts, woodworking machinery, pumps, mechanical fans and air blowers. No matter your application, VNC Bearing is ready to develop and deliver the right Spherical Roller Bearing solution for your specific needs. As your partner, VNC Bearing is ready to leverage the highest quality materials and our strict quality standards to provide the highest quality-to-cost ratio bearings in the industry today.

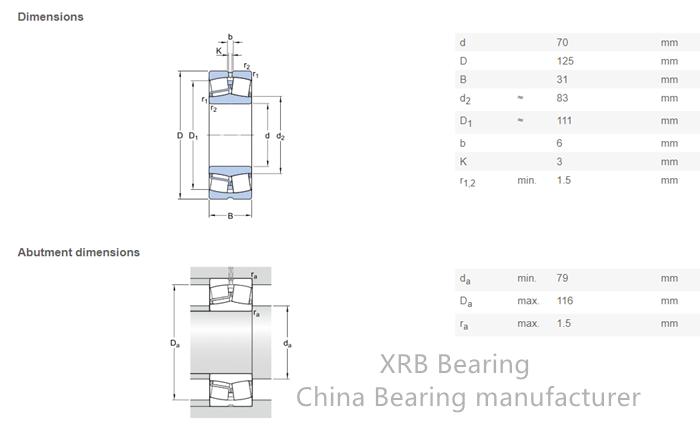

FAG Spherical Roller Bearings 22214-E1-XL Bearing Data

FAG Spherical Roller Bearings 22214-E1-XL Bearing Data

FAG Spherical roller bearing 22214-E1-XL Bearing need to be lubricated to operate stable and keep the smooth rolling between the raceway and the rollers and the cage, Thus it will be decrease the friction of the metals, the lubrication also can keep the surfaces of the spherical roller bearing against corrosion, how to choose the proper lubrication, it’s very important work.

Application of Spherical Roller Bearing
• Elevators, escalators
• Electric motors
• Mining and construction equipment
• Fluid machinery
• Marine industry machinery
• Food processing machinery
• Steel manufacturing equipment
• Conveyors
• Cranes

XRB is the China bearing manufacturer, exporter, supplier, it can supply FAG 22214-E1-XL bearing, Our large quantity FAG spherical roller bearings Stock can meet your need with good quality and fast delivery, Also you can find NSK 22214 CDE4 Bearing, the other type and brand Spherical roller bearing. just like KOYO, NTN, NKE, ZWZ, TIMKEN, please contact with us.
