High shock loads 6319 insulated bearing

Detailed Product Description

Place of Origin: China
Brand Name: CoatMaster
Certification: ISO9001
Model Number: 6319 M/C3VL0241

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box and then put in Carton or Wooden Case
Delivery Time: 5 days after confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 Pcs/Month

Detailed Product Description

Designation: 6319 C3VL0241 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C3 Dimension: 95×200×45 mm
Weight: 1.3 kg Application: Electric Traction Motors

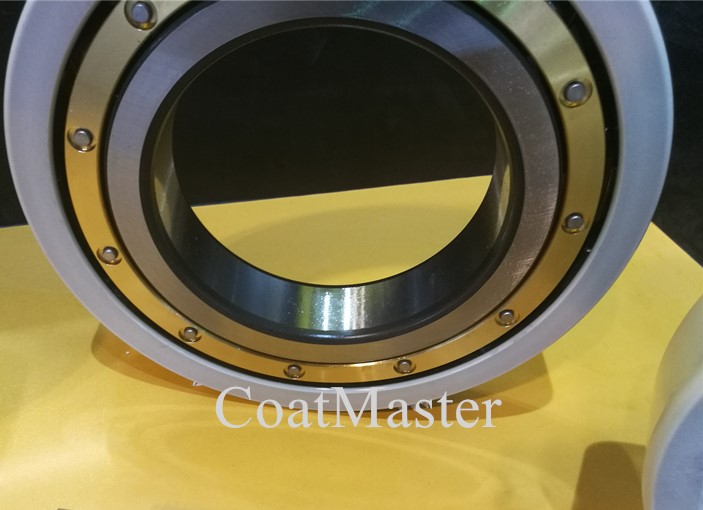

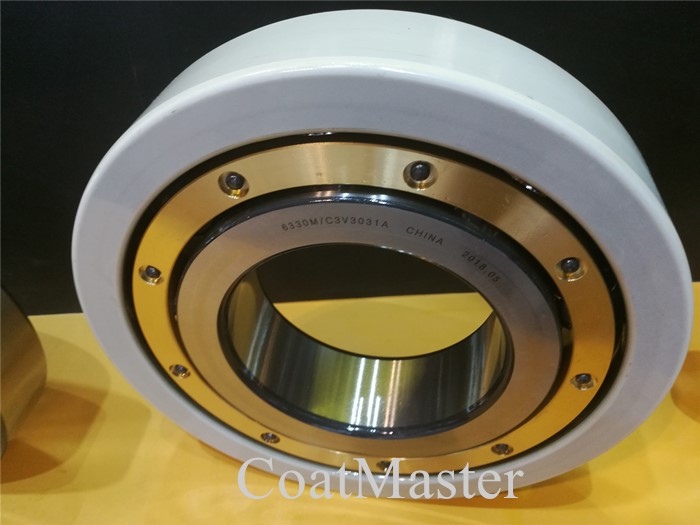

6319 C3VL0241 is the suffix of 6319 insulated bearing, it consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6319 C3 Deep Groove Ball Bearing.

Electrically insulated Rolling Bearings: 6319 C3VL0241
Principal dimensions 95×200×45mm
Weight: 6.5 kg
Basic dynamic load rating-C: 153kN
Basic static load rating-Co: 118kN
Fatigue load limit-Pu: 4.15 kN
Reference speed: 7000 r/min
Limiting speed: 6300 r/min

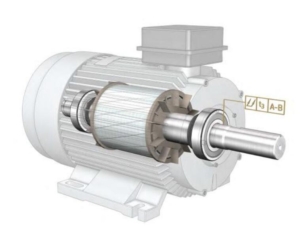

Electric Insulated bearing have an electrically insulating coat on the outer ring (suffix VL0241) or on the inner ring (suffix VL2071), respectively. Electrically Insulated Bearing are widely used in Electric Motors, generator, Alternator. there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC, insulated & insocoat bearing can keep away from moisture and humidity, it can carry radial and axial loads in both directions.


› Alumina-based ceramic coating material with optimized additives

› Bearings are plasma sprayed to ensure appropriate bonding to the bearing steel

› Coating is sealed with a special acrylic resin

› Bearings are manufactured from ultra clean steel for extended fatigue life

› High-grade balls for quiet and smooth operation at high speeds

› Super finished raceways – minimize noise and improve lubricant distribution

› Available for series 62 from 75 to 130 mm bore diameter; for series 63 from 60 to 110 mm bore diameter

› Open type, with C3 radial internal clearance

XRB is the China bearing manufacturer & exporter & supplier, it can supply 6319 insulated bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6309-J20AA-C3 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
