Detailed Product Description

Designation: 6313 insulated bearing Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C5 Dimension: 65×140×33 mm
Weight: 2.1kg Application: Electric Traction Motors

Electric 6313 insulated bearing provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

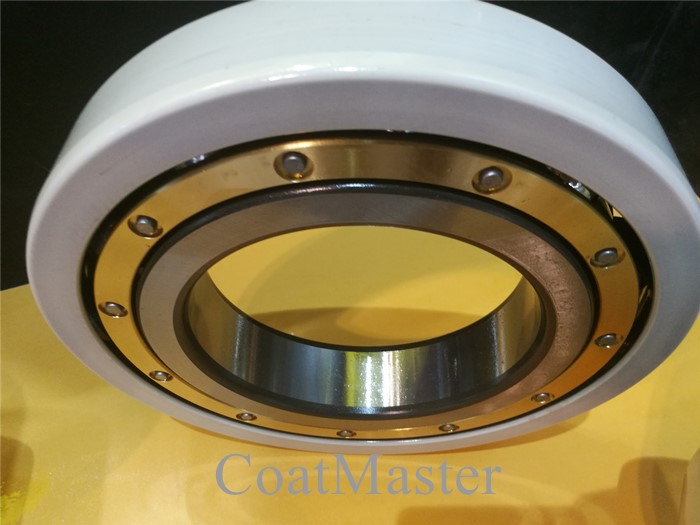

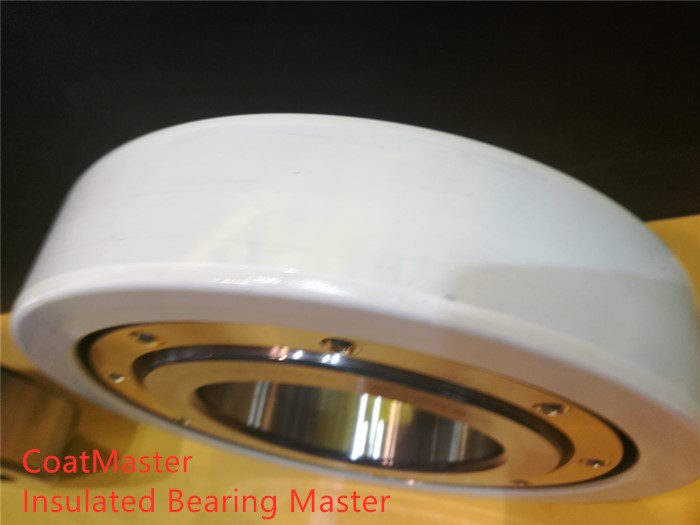

Electric Insulated Deep Groove Ball Bearing 6313 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6313 Deep Groove Ball Bearing.
Electrically insulated Rolling Bearings: 6313 C3VL0241
Principal dimensions: 65×140×33mm
Weight: 2.1 kg
Basic dynamic load rating-C: 97.5kN
Basic static load rating-Co: 60kN
Fatigue load limit-Pu: 2.5 kN
Reference speed: 10000r/min
Limiting speed: 6700 r/min

In order to select the best bearing for a particular application, all operational loads should be taken into account. In addition to the weight of the components, the forces created when power is transmitted, such as those listed below, should also be considered:

  • the magnetic pull resulting from asymmetrical air gaps
  • dynamic forces due to misalignment
  • out of balance forces
  • forces due to pitch errors in gears
  • thrust loads

Loads can be radial, axial or a combination of the two. In cases where there are heavy loads,  roller bearings are typically used. Ball bearings are generally used for lighter loads. Certain bearings, such as N and NU type cylindrical roller bearings, accommodate radial loads only while other bearings, such as angular contact ball bearings, are better suited for combined loads.

Generally, Electrically Insulated Bearing (ceramic-coated) exhibit significantly higher resistance to electrical current than standard bearings.

Advantages of Electrically Insulated Bearing :

> Higher operational reliability through optimum protection against current passages

> More economical than insulation on housings or shafts

> Interchangeable: Same dimensions and technical properties as conventional bearings

> Coating resistant to mechanical damage if correctly handled

Typical applications:

> Traction motors of railway vehicles

> Electric motors (AC/DC)

> Generators (e.g. in wind turbine generators)


› Effective prevention of electrical corrosion damage

› Superior insulation properties, with performance improved greater than 10 times

› Improved durability, with new optimized coating demonstrating 3 times the shock resistance of

conventional ceramic coated bearings

› Excellent heat dissipation

› Dimensionally interchangeable with standard bearings

XRB is the China bearing manufacturer & exporter & supplier, it can supply 6313/VL0241 bearing, The large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6313 insulated Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
