Detailed Product Description
|Aluminium Oxide Coating
|Voltages Up To 3000 V DC
|Electric Traction Motors

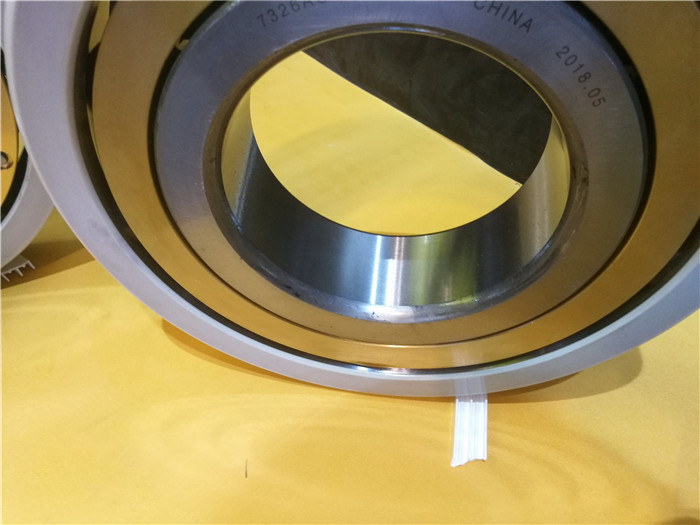

6316/C3 Insulated Bearing is one of CoatMaster Insulated deep groove ball bearing design, it can provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.
Electric Insulated Deep Groove Ball Bearing 6316/C3 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6316/C3 Deep Groove Ball Bearing.
Electrically insulated bearings:
— Designed to prevent current from flowing through the bearing
— The outer surface of their inner or outer ring is coated with an insulated alumina layer, and a sophisticated plasma spray process is applied to obtain an excellent quality finish.
— A very cost-effective solution compared to other insulation methods
Characteristics of CoatMaster insulated bearings
- Resistant to electrical corrosion
By integrating insulation performance into the bearing, CoatMaster electrically insulated bearings can improve reliability and increase machine uptime by actually eliminating the problem of electrical corrosion
- High resistance
Alumina coating has a minimum resistance of 200MΩ and can withstand voltages up to 3000 V DC
3. Stable electrical performance
Plasma spraying is usually hygroscopic and therefore easily susceptible to condensation and infiltration. To prevent this effect, Electrically insulated bearings are treated with a unique sealant.
Electrically insulated Rolling Bearings
Design of Insulated bearing: 6316/C3VL0241
Principal dimensions: 80×170×39mm
Weight: 3.6 kg
Basic dynamic load rating-C: 124kN
Basic static load rating-Co: 86.5kN
Fatigue load limit-Pu: 3.25 kN
Reference speed: 8500 r/min
Limiting speed: 5300 r/min
In order to select the best bearing for a particular application, all operational loads should be taken into account. In addition to the weight of the components, the forces created when power is transmitted, such as those listed below, should also be considered:
- the magnetic pull resulting from asymmetrical air gaps
- dynamic forces due to misalignment
- out of balance forces
- forces due to pitch errors in gears
- thrust loads
Loads can be radial, axial or a combination of the two. In cases where there are heavy loads, roller bearings are typically used. Ball bearings are generally used for lighter loads. Certain bearings, such as N and NU type cylindrical roller bearings, accommodate radial loads only while other bearings, such as angular contact ball bearings, are better suited for combined loads.
Generally, Electrically Insulated Bearing (ceramic-coated) exhibit significantly higher resistance to electrical current than standard bearings.
XRB is the China bearing manufacturer & exporter & supplier, it can supply 6316/C3 insulated bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6316 C3 Insulated Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings. insulated spherical roller bearing, insulated spherical roller thrust bearing, insulated linear motion bearings and so on.
