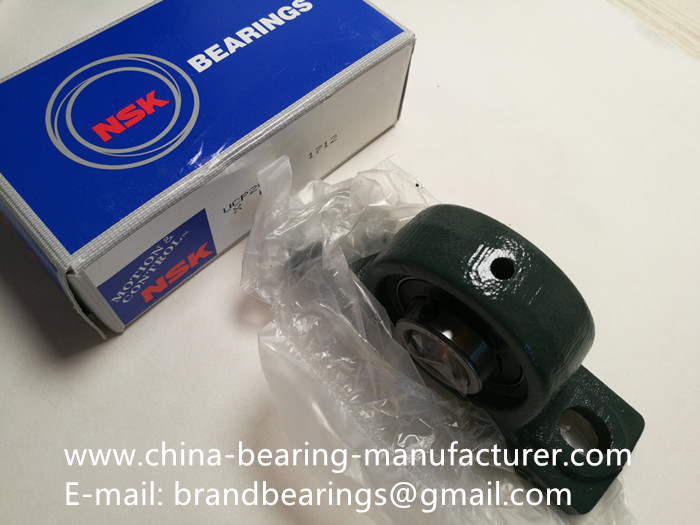

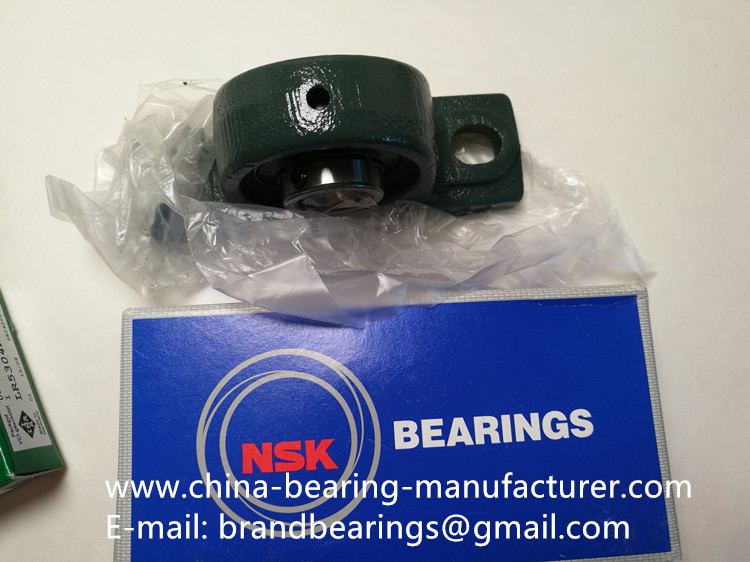

NSK UCP207 Bearing

Detailed Product Description

Dimension: 35×46×93.5×166.5mm Weight: 1.5kg
Bearing: UC207 Housing: P207
Material Of Housing:    Cast Iron Element Of Bearing: Steel Ball

Cast Iron Pillow Block Bearing Units UCP207 Bearing is one kind of ball bearing units design. it consist of Pillow Block Bearings UC207 And Pillow Block P207. Its dimension is 35×46×93.5×166.5mm, it means the shaft size 35mm, the height of the bearing units is 93.5mm, the length is 166.5mm,the width of the housing is 46mm, weight is 1.5kg, the material of the pillow block bearing UC207 are adopt high quality chrome steel, and the material of the pillow block P207 is cast iron, UCP series are not only Pillow Block Bearing Units,but also UCT Housing, UCF Housing, UCFLHousing, UCPA Housing, UCPH Housing, UCHA Housing series and so on.

Cast Iron Pillow Block Bearing Units UCP207
Principal dimensions 35×46×93.5×166.5mm
Weight 1.5kg
Basic dynamic load rating-C 25.5kN
Basic static load rating-Co 15.3kN
Fatigue load limit-Pu 0.655kN
Reference speed 0 r/min
Limiting speed 4300 r/min

Cast Iron Pillow Block Bearing Units NSK UCP207 Bearing can accommodate moderate initial misalignment, but normally do not permit axial displacement. They are ready-to-mount, ready-to-use units and available,the material of the housing can be also stainless steel, composite material,grey cast iron and sheet steel. Pillow block bearing units provide designers with considerable freedom of choice so that compromises can be avoided. Numerous standard series Y-bearing units are available.

Pillow block bearing units NSK UCP207 Bearing are preferred for applications which requiring the simple equipment and components.  for example for agricultural machinery, transportation systems or construction machinery .

Pillow block bearing units NSK UCP207 Bearing mainly be used to bear axial and radial load, Generally it’s not suitable to bear the axial load alone , this kind of bearing can be equipped with inner ring (with full set of roller and retainer ) and outer ring separately. But it does not allow that the shaft to tilt relative to the housing. additional axial force will be generated under radial load . The size of the axial clearance of this type of bearing is very important for the normal operation of the bearing. when the axial clearance is too small, the temperature rises higher, when the axial clearance is large, the bearing is easy damaged.

Therefore, during installation and operation of NSK UCP207 Bearing, special attention should be paid to adjusting the axial clearance of the pillow block bearing units, if necessary, it can be installed in advance to increase the rigidity of the bearing.

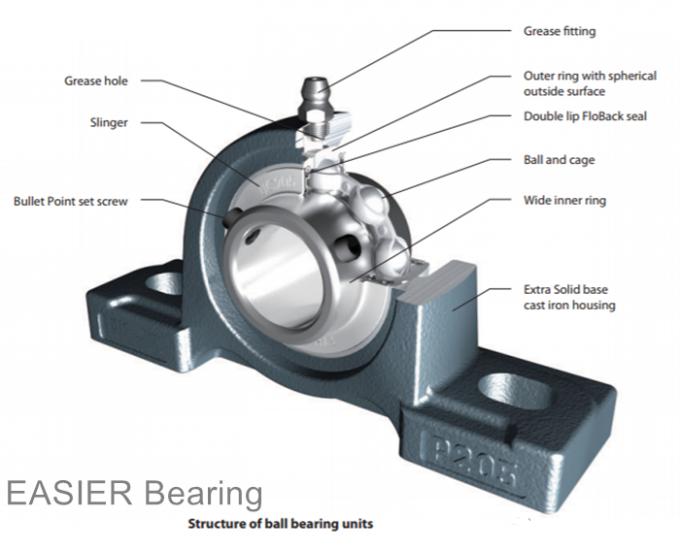

Composition of NSK UCP207 Pillow block bearing units

  • an insert bearing (a single row deep groove ball bearing) with a convex sphered outside diameter
  • a housing, which has a correspondingly sphered but concave bore

1 Outer ring

2 Sphered outer surface

3 Lubrication hole

4 Inner ring

5 Bore

6 Cage

7 Ball

8 Integral seal

9 Flinger

10 Eccentric locking collar

11 Grub (set) screw

Cast Iron Pillow Block Bearing Units UCP204

Application Of Pillow block bearing units
— Agricultural machinery,
— Construction equipment,
— Conveyor systems,
— Textile machines and fans
— Machines for food
— Beverage processing and packaging.
