Tapered Roller Bearings Size Chart

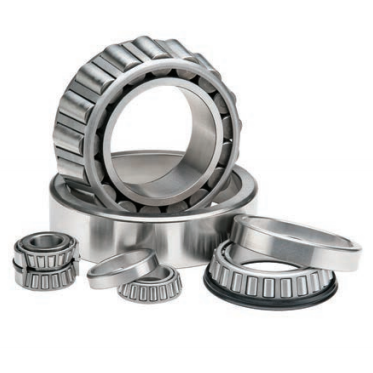

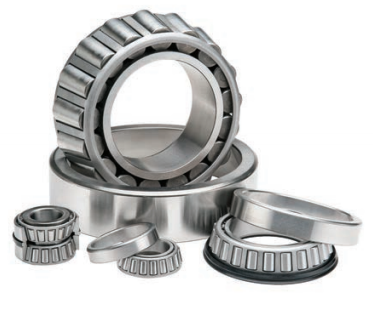

Tapered roller bearings are separable bearings, and both the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into different structural types such as single-row, double-row and four-row tapered roller bearings according to the number of rows of rollers installed. Single row tapered roller bearings can withstand radial loads and axial loads in one direction. When the bearing is subjected to radial load, an axial component force will be generated, so when another bearing that can withstand axial force in the opposite direction is required to balance.

The ability of a single row tapered roller bearing to withstand axial loads depends on the contact angle, that is, the angle of the outer ring raceway. The larger the angle, the greater the axial load capacity. The most used tapered roller bearings are single row tapered roller bearings. In the front wheel hub of the car, a small-sized double-row tapered roller bearing is used. Four-row tapered roller bearings are used in heavy-duty machines such as large cold and hot rolling mills.

Tapered roller bearings are mainly used to bear combined radial and axial loads mainly based on radial loads. Compared with angular contact ball bearings, the bearing capacity is large and the limit speed is low. Tapered roller bearings can withstand axial loads in one direction and can limit the axial displacement of the shaft or housing in one direction.

Tapered Roller Bearing have Metric size and inch size design,  and also carbon steel Tapered Roller Bearings, chrome steel tapered roller bearings, stainless steel tapered roller bearings, insulated tapered roller bearings, plastic tapered roller bearings, ceramic tapered roller bearings, high precision tapered roller bearings, high temperature tapered roller bearings.



Tapered Roller Bearings Size Chart

Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
A 4059/A 4138 14.989 34.988 10.998 16.5 13.2 17 000 22 000
30202 15 35 11.75 18.5 14.6 17 000 20 000
30302 15 42 14.25 27.7 20 15 000 18 000
11590/11520 15.875 42.862 14.288 21.5 17.6 13 000 17 000
30203 17 40 13.25 23.4 18.6 15 000 18 000
30303 17 47 15.25 34.2 25 13 000 16 000
32303 17 47 20.25 42.8 33.5 12 000 16 000
LM 11749/710 17.462 39.878 13.843 26.1 20.8 15 000 18 000
LM 11949/910 19.05 45.237 15.494 33.8 27.5 13 000 16 000
30204 20 47 15.25 34.1 28 12 000 15 000
30304 20 52 16.25 41.9 32.5 12 000 14 000
32004 X 20 42 15 29.7 27 13 000 16 000
32304 20 52 22.25 54.3 45.5 11 000 14 000
M 12649/610 21.43 50.005 17.526 45.4 38 12 000 15 000
LM 12749/710 21.987 45.237 15.494 33.9 31 12 000 15 000
320/22 X 22 44 15 30.9 29 13 000 15 000
30205 25 52 16.25 38.1 33.5 11 000 13 000
30305 25 62 18.25 55.3 43 9 500 12 000
31305 25 62 18.25 46.6 40 8 500 11 000
32005 X 25 47 15 33.2 32.5 12 000 14 000
32205 B 25 52 19.25 44.5 44 10 000 13 000
32305 25 62 25.25 74.1 63 9 000 12 000
33205 25 52 22 57.9 56 10 000 13 000
15101/15245 25.4 62 19.05 59.5 57 9 000 11 000
15578/15520 25.4 57.15 17.462 49.1 45.5 10 000 12 000
L 44643/610 25.4 50.292 14.224 32 30 11 000 13 000
M 84548/510 25.4 57.15 19.431 48.8 45 10 000 12 000
L 44649/610 26.988 50.292 14.224 32 30 11 000 13 000
302/28 28 58 17.25 46.6 41.5 10 000 12 000
320/28 X 28 52 16 39 38 10 000 13 000
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
322/28 B 28 58 20.25 51.9 50 9 500 12 000
1988/1922 28.575 57.15 19.845 58.2 55 10 000 12 000
L 45449/410 29 50.292 14.224 31.8 32.5 11 000 13 000
30206 30 62 17.25 50 44 9 000 11 000
30306 30 72 20.75 69.2 56 8 000 10 000
31306 30 72 20.75 58.3 50 7 500 9 500
32006 X 30 55 17 43.9 44 10 000 12 000
32206 30 62 21.25 61.8 57 9 000 11 000
32306 30 72 28.75 95 85 7 500 10 000
33206 30 62 25 79.7 76.5 8 500 11 000
M 86649/610 30.162 64.292 21.433 60.4 61 8 500 11 000
M 88043/010 30.162 68.262 22.225 67.1 69.5 8 000 10 000
15123/15245 31.75 62 18.161 59.5 57 9 000 11 000
HM 88542/510 31.75 73.025 29.37 86.5 95 7 500 9 000
LM 67048/010 31.75 59.131 15.875 42.8 41.5 9 500 11 000
320/32 X 32 58 17 45.1 46.5 9 000 11 000
14131/14276 33.338 69.012 19.845 65.8 67 8 000 10 000
25877/25821 34.925 73.025 23.812 89.1 88 8 000 9 500
HM 88649/610 34.925 72.233 25.4 83 90 7 500 9 000
HM 89446/410 34.925 76.2 29.37 95.2 106 7 000 8 500
LM 48548 A/510 34.925 65.088 18.034 58 57 8 500 10 000
L 68149/110 34.987 59.131 15.875 40.6 44 9 000 11 000
L 68149/111 34.987 59.975 15.875 40.6 44 9 000 11 000
30207 35 72 18.25 63.2 56 8 000 9 500
30307 35 80 22.75 88.9 73.5 7 500 9 000
31307 35 80 22.75 75.4 67 6 300 8 500
32007 X 35 62 18 52.3 54 8 500 10 000
32207 35 72 24.25 81.2 78 8 000 9 500
32307 35 80 32.75 117 106 6 700 9 000
32307 B 35 80 32.75 115 114 6 300 8 500
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
33207 35 72 28 104 106 7 000 9 500
HM 89449/410 36.512 76.2 29.37 95.2 106 7 000 8 500
JL 69349 A/310 38 63 17 45.7 52 8 500 10 000
JL 69349 X/310 38 63 17 45.7 52 8 500 10 000
JL 69349/310 38 63 17 45.7 52 8 500 10 000
418/414 38.1 88.5 26.988 123 114 6 700 8 500
HM 801346 X/310 38.1 82.55 29.37 106 118 6 700 8 000
HM 801346/310 38.1 82.55 29.37 106 118 6 700 8 000
LM 29748/710 38.1 65.088 18.034 53 57 8 000 10 000
LM 29749/710 38.1 65.088 18.034 53 57 8 000 10 000
LM 29749/711 38.1 65.088 19.812 53 57 8 000 10 000
30208 40 80 19.75 75.8 68 7 000 8 500
30208 R 40 80 19.75 75.8 68 7 000 8 500
30308 40 90 25.25 106 95 6 300 8 000
31308 40 90 25.25 91.1 81.5 5 600 7 500
32008 X 40 68 19 64.7 71 7 500 9 500
32208 40 80 24.75 91.6 86.5 7 000 8 500
32308 40 90 35.25 143 140 6 000 8 000
33108 40 75 26 97.5 104 7 000 9 000
33208 40 80 32 128 132 6 300 8 500
T2EE 040 40 85 33 150 150 6 700 8 000
LM 300849/811 40.987 67.975 17.5 53.6 58.5 8 000 9 500
24780/24720 41.275 76.2 22.225 84.2 86.5 7 000 9 000
3585/3525 41.275 87.312 30.162 126 132 6 300 8 000
HM 803146/110 41.275 88.9 30.162 116 127 6 000 7 500
LM 501349/310 41.275 73.431 19.558 67.6 68 7 500 9 000
LM 501349/314 41.275 73.431 21.43 67.6 68 7 500 9 000
M 802048/011 41.275 82.55 26.543 91.2 91.5 6 700 8 000
25577/25523 42.875 82.931 26.988 99.1 106 6 700 8 000
25580/25520 44.45 82.931 23.812 99.1 106 6 700 8 000
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
25580/25522 44.45 83.058 23.876 99.1 106 6 700 8 000
25580/25523 44.45 82.931 26.988 99.1 106 6 700 8 000
3782/3720 44.45 93.264 30.163 134 146 5 600 7 000
53178/53377 44.45 95.25 30.958 108 96.5 5 300 7 000
535/532 A 44.45 111.125 38.1 183 190 5 300 6 300
HM 803149/110 44.45 88.9 30.162 116 127 6 000 7 500
HM 903249/210 44.45 95.25 30.958 124 122 5 300 7 000
30209 45 85 20.75 81.6 76.5 6 300 8 000
30309 45 100 27.25 132 120 5 600 7 000
31309 45 100 27.25 113 102 5 000 6 700
32009 X 45 75 20 71.7 80 7 000 8 500
32209 45 85 24.75 98.7 98 6 300 8 000
32309 45 100 38.25 173 170 5 300 7 000
33109 45 80 26 104 114 6 700 8 000
33209 45 85 32 132 143 6 000 7 500
358 X/354 X 45 85 20.638 87.3 81.5 6 700 8 000
T2ED 045 45 95 36 182 186 6 000 7 000
T7FC 045 45 95 29 110 112 5 300 7 000
LM 102949/910 45.242 73.431 19.558 66 75 7 000 8 500
LM 603049/011 45.242 77.788 19.842 66.8 69.5 7 000 8 500
LM 603049/012 45.242 77.788 21.43 66.8 69.5 7 000 8 500
25590/25520 45.618 82.931 23.812 99.1 106 6 700 8 000
25590/25523 45.618 82.931 26.988 99.1 106 6 700 8 000
LM 503349/310 45.987 74.975 18 62.1 71 7 000 8 500
18690/18620 46.038 79.375 17.462 61.1 62 7 000 8 500
359 S/354 X 46.038 85 20.638 87.3 81.5 6 700 8 000
369 S/362 A 47.625 88.9 20.638 94 91.5 6 300 7 500
30210 50 90 21.75 93.1 91.5 6 000 7 500
30310 50 110 29.25 154 140 5 300 6 300
31310 50 110 29.25 131 120 4 500 6 000
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
32010 X 50 80 20 75.1 88 6 300 8 000
32210 50 90 24.75 101 100 6 000 7 500
32310 50 110 42.25 211 212 4 800 6 300
32310 B 50 110 42.25 196 216 4 500 6 000
32910 50 72 15 41.3 53 7 000 8 500
33010 50 80 24 84.8 102 6 300 8 000
33110 50 85 26 106 122 6 000 7 500
33210 50 90 32 142 160 5 300 7 000
JLM 104945/910 50 82 21.501 88.9 100 6 300 8 000
JM 205149/110 50 90 28 130 140 6 000 7 500
JM 205149/110 A 50 90 28 130 140 6 000 7 500
T2ED 050 50 100 36 189 200 5 600 6 700
T7FC 050 50 105 32 134 137 4 800 6 300
18790/18720 50.8 85 17.462 62.1 65.5 6 300 8 000
368 A/362 A 50.8 88.9 20.638 94 91.5 6 300 7 500
368 A/362 X 50.8 90 25 94 91.5 6 300 7 500
537/532 X 50.8 107.95 36.512 183 190 5 300 6 300
539/532 X 53.975 107.95 36.512 183 190 5 300 6 300
72212/72487 53.975 123.825 36.512 174 160 4 300 5 600
LM 806649/610 53.975 88.9 19.05 71.5 78 6 000 7 000
30211 55 100 22.75 111 106 5 300 6 700
30311 55 120 31.5 176 163 4 800 5 600
31311 55 120 31.5 149 137 4 300 5 600
32011 X 55 90 23 99.4 116 5 600 7 000
32211 55 100 26.75 130 129 5 300 6 700
32311 55 120 45.5 245 250 4 300 5 600
33011 55 90 27 111 137 5 600 7 000
33111 55 95 30 136 156 5 600 6 700
33211 55 100 35 170 190 4 800 6 300
T2ED 055 55 110 39 220 232 5 000 6 000
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
T7FC 055 55 115 34 155 163 4 300 5 600
387 A/382 A 57.15 96.838 21 99.9 102 5 600 6 700
39581/39520 57.15 112.712 30.162 175 204 4 500 5 600
462/453 X 57.15 104.775 30.162 150 160 5 300 6 300
6391/K-6320 59.987 135.755 53.975 353 400 4 000 5 000
30212 60 110 23.75 120 114 5 000 6 000
30312 60 130 33.5 208 196 4 300 5 300
31312 60 130 33.5 177 166 3 800 5 300
32012 X 60 95 23 101 122 5 300 6 700
32212 60 110 29.75 155 160 5 000 6 000
32312 60 130 48.5 282 290 4 000 5 300
32312 B 60 130 48.5 271 305 3 800 5 000
32912 60 85 17 53.2 75 6 000 7 000
33012 60 95 27 113 143 5 300 6 700
33112 60 100 30 144 170 5 300 6 300
33212 60 110 38 207 236 4 500 6 000
JLM 508748/710 60 95 24 103 132 5 300 6 700
T2EE 060 60 115 40 239 260 4 800 5 600
T7FC 060 60 125 37 190 204 4 000 5 300
395/394 A 63.5 110 22 108 118 4 800 6 000
39585/39520 63.5 112.712 30.162 175 204 4 500 5 600
3982/3920 63.5 112.712 30.163 152 183 4 800 5 600
30213 65 120 24.75 141 134 4 500 5 600
30313 65 140 36 240 228 4 000 4 800
31313 65 140 36 203 193 3 600 4 800
32013 X 65 100 23 103 127 5 000 6 000
32213 65 120 32.75 186 193 4 500 5 600
32313 65 140 51 323 335 3 600 4 800
32313 B 65 140 51 305 345 3 600 4 800
32913 65 90 17 54.7 80 5 600 6 700
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
33013 65 100 27 119 153 5 000 6 300
33113 65 110 34 175 208 4 800 5 600
33213 65 120 41 239 270 4 000 5 300
JLM 710949/910 65 105 24 122 137 5 000 6 000
JM 511946/910 65 110 28 152 183 4 800 5 600
T2DD 065 65 110 31 170 193 4 800 6 000
T7FC 065 65 130 37 194 216 3 800 5 000
6379/K-6320 65.088 135.755 53.975 353 400 4 000 5 000
395 A/394 A 66.675 110 22 108 118 4 800 6 000
395 S/394 A 66.675 110 22 108 118 4 800 6 000
39590/39520 66.675 112.712 30.162 175 204 4 500 5 600
3984/3920 66.675 112.712 30.162 152 183 4 800 5 600
6386/K-6320 66.675 135.755 53.975 353 400 4 000 5 000
482/472 69.85 120 29.795 163 186 4 500 5 300
566/563 69.85 127 36.512 217 255 4 300 5 000
30214 70 125 26.25 155 156 4 300 5 300
30314 70 150 38 271 260 3 800 4 500
31314 70 150 38 229 220 3 400 4 500
32014 X 70 110 25 125 153 4 500 5 600
32214 70 125 33.25 195 208 4 300 5 300
32314 70 150 54 363 380 3 400 4 500
32914 70 100 20 85.8 112 5 000 6 000
33014 70 110 31 159 196 4 800 5 600
33114 70 120 37 211 250 4 300 5 300
33214 70 125 41 247 285 3 800 5 000
T2ED 070 70 130 43 289 325 4 000 5 000
T7FC 070 70 140 39 219 240 3 400 4 500
33281/33462 71.438 117.475 30.162 152 190 4 500 5 300
H 715345/311 71.438 136.525 46.038 273 355 3 800 4 500
567/563 73.025 127 36.512 217 255 4 300 5 000
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
30215 75 130 27.25 171 176 4 000 5 000
30315 75 160 40 301 290 3 400 4 300
31315 75 160 40 255 245 3 200 4 300
32015 X 75 115 25 130 163 4 300 5 300
32215 75 130 33.25 197 212 4 000 5 000
32315 75 160 58 416 440 3 200 4 300
32315 B 75 160 58 410 475 3 200 4 000
32915 75 105 20 86.8 116 4 800 5 600
33015 75 115 31 167 228 4 300 5 300
33115 75 125 37 216 265 4 000 5 000
33215 75 130 41 255 300 3 600 4 800
JH 415647/610 75 145 51 380 450 3 600 4 500
JM 714249/210 75 120 31 170 216 4 300 5 300
42687/42620 76.2 127 30.162 171 204 4 000 5 000
47678/47620 76.2 133.35 33.338 202 260 3 800 4 800
575/572 76.2 139.992 36.512 227 280 3 800 4 500
34306/34478 77.788 121.442 24.608 115 134 4 300 5 300
42690/42620 77.788 127 30.163 171 204 4 000 5 000
30216 80 140 28.25 184 183 3 800 4 800
30316 80 170 42.5 333 320 3 200 4 000
31316 80 170 42.5 276 265 3 000 4 000
32016 X 80 125 29 168 216 4 000 5 000
32216 80 140 35.25 228 245 3 800 4 500
32316 80 170 61.5 404 500 3 000 4 000
32916 80 110 20 89.7 125 4 500 5 600
33016 80 125 36 207 285 4 000 5 000
33116 80 130 37 221 280 4 000 4 800
33216 80 140 46 308 375 3 400 4 500
JM 515649/610 80 130 35 216 275 4 000 4 800
580/572 82.55 139.992 36.512 227 280 3 800 4 500
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
663/653 82.55 146.05 41.275 270 320 3 600 4 300
749 A/742 82.55 150.089 44.45 351 405 3 600 4 300
30217 85 150 30.5 216 220 3 600 4 300
30317 85 180 44.5 372 365 3 000 3 800
31317 85 180 44.5 297 285 2 800 3 800
32017 X 85 130 29 171 224 3 800 4 800
32217 85 150 38.5 263 285 3 600 4 300
32317 85 180 63.5 435 530 2 800 3 800
32917 85 120 23 115 156 4 000 5 000
33017 85 130 36 223 310 3 800 4 800
33117 85 140 41 268 340 3 600 4 500
33217 85 150 49 353 430 3 200 4 300
T7FC 085 85 170 48 333 380 2 800 3 800
497/492 A 85.725 133.35 30.163 178 220 3 800 4 500
593/592 A 88.9 152.4 39.688 237 305 3 400 4 300
6580/6535 88.9 161.925 53.975 404 510 3 200 4 000
HM 218248/210 89.975 146.975 40 280 355 3 400 4 300
30218 90 160 32.5 240 245 3 400 4 000
30318 90 190 46.5 353 400 2 600 3 600
31318 90 190 46.5 283 315 2 400 3 400
32018 X 90 140 32 208 270 3 600 4 300
32218 90 160 42.5 309 340 3 400 4 000
32318 90 190 67.5 487 610 2 600 3 600
32918 90 125 23 119 166 4 000 4 800
33018 90 140 39 266 355 3 600 4 500
33118 90 150 45 310 390 3 400 4 300
33218 90 160 55 415 520 3 000 4 000
6581 X/6535 90 161.925 53.975 404 510 3 200 4 000
JM 718149 A/110 90 145 35 246 305 3 600 4 300
JM 718149/110 90 145 35 246 305 3 600 4 300
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
598/592 A 92.075 152.4 39.688 237 305 3 400 4 300
30219 95 170 34.5 266 275 3 200 3 800
30319 95 200 49.5 353 390 2 600 3 400
31319 95 200 49.5 314 355 2 400 3 400
32019 X 95 145 32 206 270 3 400 4 300
32219 95 170 45.5 348 390 3 200 3 800
32319 95 200 71.5 535 670 2 400 3 400
32919 95 130 23 121 173 3 800 4 500
33019 95 145 39 272 375 3 400 4 300
33219 95 170 58 460 560 2 800 3 800
594 A/592 A 95.25 152.4 39.688 237 305 3 400 4 300
594/592 A 95.25 152.4 39.688 237 305 3 400 4 300
683/672 95.25 168.275 41.275 288 365 3 000 3 800
HM 220149/110 99.975 156.975 42 303 400 3 200 4 000
30220 100 180 37 304 320 3 000 3 600
30320 100 215 51.5 431 490 2 400 3 200
31320 X 100 215 56.5 399 465 2 200 3 000
32020 X 100 150 32 209 280 3 200 4 000
32220 100 180 49 390 440 3 000 3 600
32320 100 215 77.5 617 780 2 200 3 200
32920 100 140 25 147 204 3 400 4 300
33020 100 150 39 278 390 3 400 4 000
33220 100 180 63 532 655 2 600 3 600
T2EE 100 100 165 47 383 480 3 200 3 800
T4CB 100 100 145 24 154 190 3 400 4 300
687/672 101.6 168.275 41.275 288 365 3 000 3 800
HH 224335/310 101.6 212.725 66.675 619 830 2 200 3 000
30221 105 190 39 333 355 2 800 3 400
30321 105 225 53.5 462 530 2 200 3 000
32021 X 105 160 35 248 335 3 200 3 800
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
32221 105 190 53 443 510 2 800 3 400
32321 105 225 81.5 645 815 2 000 3 000
32921 105 145 25 149 212 3 400 4 000
33021 105 160 43 303 430 3 200 3 800
56425/56650 107.95 165.1 36.512 256 355 3 000 3 600
64432/64708 109.975 179.975 41.275 307 415 2 800 3 400
30222 110 200 41 327 405 2 400 3 200
30322 110 240 54.5 507 585 2 200 2 800
31322 X 110 240 63 491 585 1 900 2 800
32022 X 110 170 38 288 390 3 000 3 600
32222 110 200 56 491 570 2 600 3 200
32322 110 240 84.5 675 830 1 900 2 800
32922 110 150 25 154 224 3 200 4 000
33022 110 170 47 343 500 3 000 3 600
33122 110 180 56 455 630 2 800 3 400
64450/64700 114.3 177.8 41.275 307 415 2 800 3 400
68450/68712 114.3 180.975 34.925 227 280 2 800 3 400
938/932 114.3 212.725 66.675 626 765 2 600 3 200
30224 120 215 43.5 417 465 2 400 3 000
30324 120 260 59.5 601 710 2 000 2 600
31324 X 120 260 68 578 695 1 700 2 400
32024 X 120 180 38 299 415 2 800 3 400
32224 120 215 61.5 573 695 2 400 3 000
32324 120 260 90.5 855 1 120 1 800 2 600
32924 120 165 29 204 305 3 000 3 600
33024 120 180 48 356 540 2 800 3 400
T4CB 120 120 170 27 195 250 2 800 3 600
48290/48220 127 182.562 39.688 281 440 2 600 3 200
30226 130 230 43.75 451 490 2 200 2 800
30326 130 280 63.75 679 800 1 800 2 400
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
31326 X 130 280 72 647 780 1 600 2 400
32026 X 130 200 45 388 540 2 400 3 000
32226 130 230 67.75 590 830 2 000 2 800
32326 130 280 98.75 1 019 1 340 1 600 2 400
32926 130 180 32 245 365 2 600 3 200
33026 130 200 55 470 680 2 400 3 000
67391/67322 133.35 196.85 46.038 395 585 2 400 3 000
L 327249/210 133.35 177.008 25.4 166 280 2 600 3 200
HM 231132/110 139.7 236.538 57.15 629 850 2 200 2 600
30228 140 250 45.75 451 570 1 900 2 600
31328 X 140 300 77 737 900 1 500 2 200
32028 X 140 210 45 404 585 2 400 2 800
32228 140 250 71.75 691 1 000 1 900 2 600
32328 140 300 107.75 1 220 1 660 1 600 2 200
32928 140 190 32 252 390 2 600 3 000
T4CB 140 140 195 29 241 325 2 400 3 000
30230 150 270 49 455 560 1 800 2 400
30330 150 320 72 879 1 060 1 600 2 000
31330 X 150 320 82 832 1 020 1 400 2 000
32030 X 150 225 48 456 655 2 200 2 600
32230 150 270 77 782 1 140 1 700 2 400
32930 150 210 38 346 530 2 200 2 800
33030 150 225 59 487 865 2 000 2 600
T4DB 150 150 210 32 287 390 2 200 2 800
LM 330448/410 152.4 203.2 41.275 251 480 2 400 2 800
L 432348/310 158.75 205.583 23.812 168 280 2 200 2 800
L 432349/310 158.75 205.583 23.813 168 280 2 200 2 800
30232 160 290 52 566 735 1 600 2 200
30332 160 340 75 970 1 180 1 500 2 000
32032 X 160 240 51 532 780 2 000 2 400
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
32232 160 290 84 934 1 400 1 600 2 200
32932 160 220 38 349 540 2 200 2 600
T4DB 160 160 220 32 257 415 2 000 2 600
HH 437549/510 165.1 336.55 92.075 1 198 1 700 1 400 1 900
30234 170 310 57 657 865 1 500 2 000
32034 X 170 260 57 625 915 1 900 2 200
32234 170 310 91 1 075 1 630 1 500 2 000
32934 170 230 38 351 585 2 000 2 400
T4DB 170 170 230 32 307 440 2 000 2 600
M 336948/912 178.595 265.112 51.595 532 880 1 700 2 200
M 336949/912 179.934 265.112 51.595 532 880 1 700 2 200
30236 180 320 57 629 815 1 500 2 000
32036 X 180 280 64 793 1 160 1 700 2 200
32236 180 320 91 1 069 1 630 1 400 1 900
32936 180 250 45 435 735 1 900 2 200
T4DB 180 180 240 32 309 450 2 000 2 400
87737/87111 187.325 282.575 50.8 427 695 1 600 2 000
30238 190 340 60 763 1 000 1 400 1 800
32038 X 190 290 64 806 1 200 1 600 2 000
32238 190 340 97 1 267 1 930 1 300 1 800
32938 190 260 45 443 765 1 800 2 200
JM 738249/210 190 260 46 443 765 1 800 2 200
87750/87111 190.5 282.575 50.8 427 695 1 600 2 000
LL 639249/210 196.85 241.3 23.812 189 315 1 900 2 400
67981/67919 198.298 279.4 46.038 465 830 1 600 2 000
67982/67919 199.949 279.4 46.038 465 830 1 600 2 000
30240 200 360 64 845 1 120 1 300 1 700
32040 X 200 310 70 800 1 370 1 400 1 900
32240 200 360 104 1 300 2 000 1 300 1 700
32940 200 280 51 588 950 1 700 2 000
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
T4DB 200 200 270 37 401 600 1 700 2 200
67983/67920 203.2 282.575 46.038 465 830 1 600 2 000
67985/67920 206.375 282.575 46.038 465 830 1 600 2 000
H 242649/610 206.375 336.55 98.425 1 230 2 160 1 300 1 800
30244 220 400 72 1 059 1 400 1 200 1 600
32044 X 220 340 76 955 1 660 1 300 1 700
32244 220 400 114 1 720 2 700 1 100 1 500
32944 220 300 51 601 1 000 1 500 1 900
LM 245846/810 230.188 317.5 47.625 556 980 1 300 1 800
LM 245848/810 231.775 317.5 47.625 556 980 1 300 1 800
32048 X 240 360 76 989 1 800 1 200 1 600
32248 240 440 127 1 918 3 350 1 000 1 300
32948 240 320 51 624 1 080 1 400 1 700
T4EB 240 240 320 42 458 815 1 300 1 700
HH 953749/710 254 533.4 133.35 2 012 2 750 800 1 100
M 349547/510 255.6 342.9 57.15 698 1 400 1 200 1 600
M 249747/710 257.175 358.775 71.438 1 030 1 760 1 300 1 600
M 349549/510 257.175 342.9 57.15 698 1 400 1 200 1 600
32052 X 260 400 87 1 241 2 200 1 100 1 400
32252 260 480 137 2 340 3 650 900 1 200
32952 260 360 63.5 910 1 530 1 300 1 600
BT1B 332973 260 540 109 2 120 3 050 850 1 300
38880/38820 263.525 325.438 28.575 273 550 1 400 1 700
32056 X 280 420 87 1 288 2 360 1 000 1 300
32256 280 500 137 2 410 3 900 850 1 200
L 555249/210 292.1 374.65 47.625 539 1 140 1 100 1 500
32060 X 300 460 100 1 644 3 000 900 1 200
32260 J2/HA1 300 540 149 2 750 4 750 800 1 100
32960 300 420 76 1 126 2 240 950 1 300
LM 757049/010 304.8 406.4 63.5 775 1 700 1 000 1 300
Designation Principal dimensions Basic load ratings Speed ratings
CoatMaster dynamic static Reference speed Limiting speed
d[mm] D[mm] T[mm] C[kN] C0[kN] [r/min] [r/min]
HM 259048/010/HA4 317.5 447.675 85.725 1 363 2 700 900 1 200
32064 X 320 480 100 1 663 3 100 850 1 100
32264 320 580 159 3 353 5 500 750 1 000
32964 320 440 76 1 156 2 360 900 1 200
HM 261049/010 333.375 469.9 90.488 1 428 2 850 850 1 200
32968 340 460 76 1 163 2 400 850 1 200
LM 361649/610 342.9 450.85 66.675 1 000 2 200 900 1 200
LM 361649 A/610 343.154 450.85 66.675 1 000 2 200 900 1 200
HM 262749/710 346.075 488.95 95.25 1 533 3 150 850 1 100
431884 A 355.65 482.65 60.32 572 1 200 850 1 300
32972 360 480 76 1 191 2 550 800 1 100
L 865547/512 381 479.425 49.213 638 1 500 800 1 100
LM 567949/910/HA1 406.4 549.275 85.725 1 467 3 050 700 950
LM 869448/410 431.8 571.5 74.612 1 145 2 550 670 900
L 570649/610 457.2 573.088 74.612 1 205 3 000 670 900
LM 272235/210 457.2 615.95 85.725 1 593 3 800 600 800
LM 770949/910 457.2 603.25 85.725 1 541 3 400 630 850
BT1-8003/HA1 479.425 717.55 136.525 3 030 6 800 530 800
BT1B 332529/HA1 479.425 679.45 128.588 2 750 6 300 560 850
EE 243190/243250 482.6 634.873 80.962 1 584 3 650 600 800
LM 772748/710/HA1 488.95 634.873 84.138 1 450 3 650 600 850
EE 243196/243250/HA2 498.475 634.873 80.962 1 470 3 650 600 850
EE 982051/982900 520.7 736.6 88.9 1 650 3 350 530 750
BT1B 328017/HA4 536.575 820 152 3 910 7 800 450 670
M 276449/410 536.575 761.873 146.05 3 360 8 000 500 670
L 476549 AX/510 549.199 692.15 80.963 1 340 3 450 530 1 100
EE 843220/843290 558.8 736.6 88.108 1 963 4 150 500 670
LM 377449/410 558.8 736.6 104.775 2 482 5 700 500 670
BT1B 334140/HA4 660.4 1 000 152.4 4 652 9 500 360 480
L 281147/110 660.4 812.8 95.25 2 086 5 600 430 560
BT1B 332787/HA4 680 1 000 190 5 610 12 700 360 500
BT1B 332705/HA4 682.625 1 080 200 6 710 13 200 320 480
BT1B 332890/HA1 710 950 113 2 860 6 550 360 530
LM 283649/610/HA1 749.3 990.6 159.5 4 903 12 000 340 450
LL 483449/418 762 889 69.85 1 320 3 800 380 500
EE 763330/763410 838.2 1 041.4 93.663 2 140 5 200 320 430
BT1B 328214/HA5 900 1 180 122 3 960 9 150 260 360
BT1-8010/HA4 1 270 1 465 100 3 407 10 800 180 240
