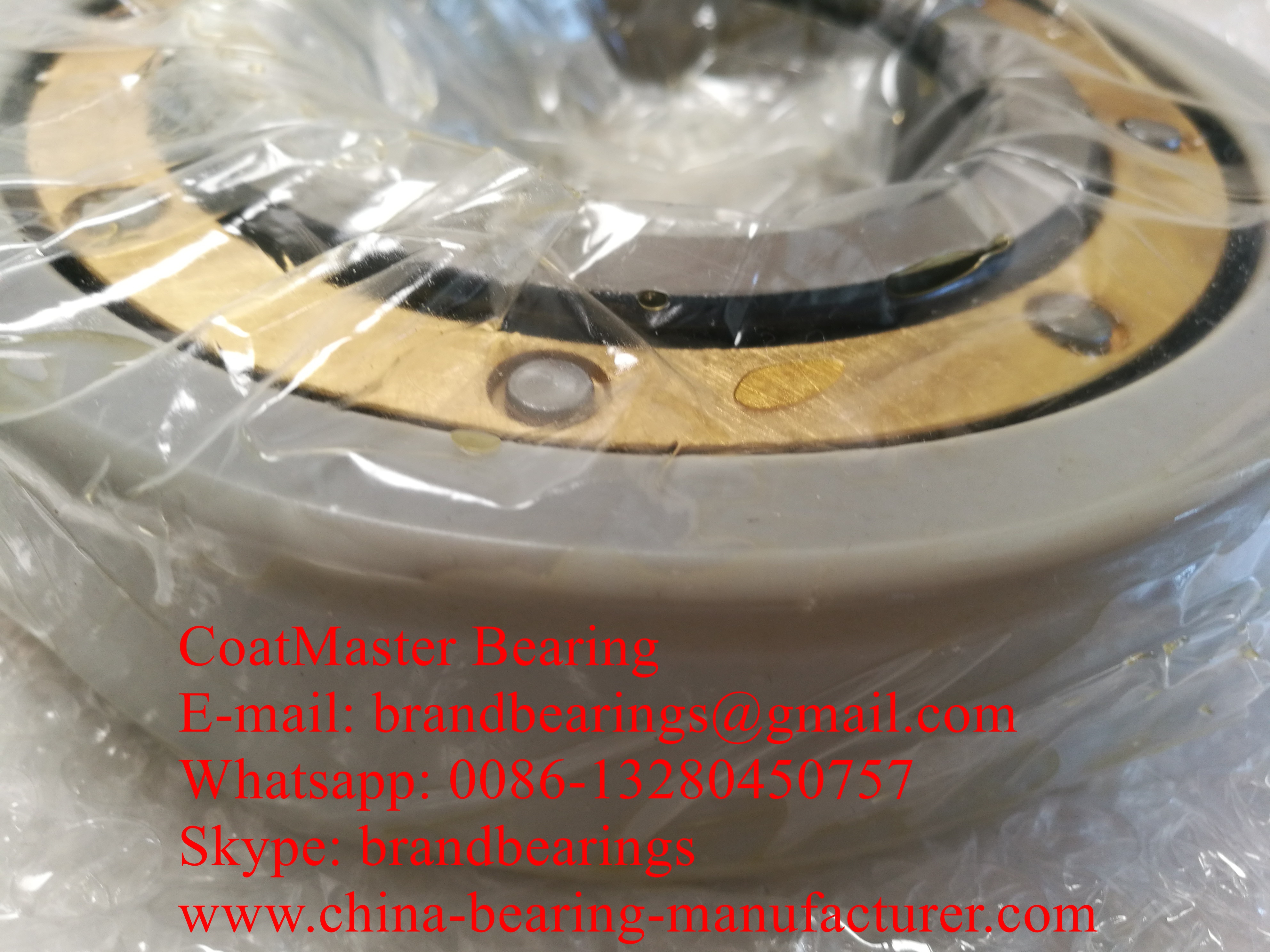

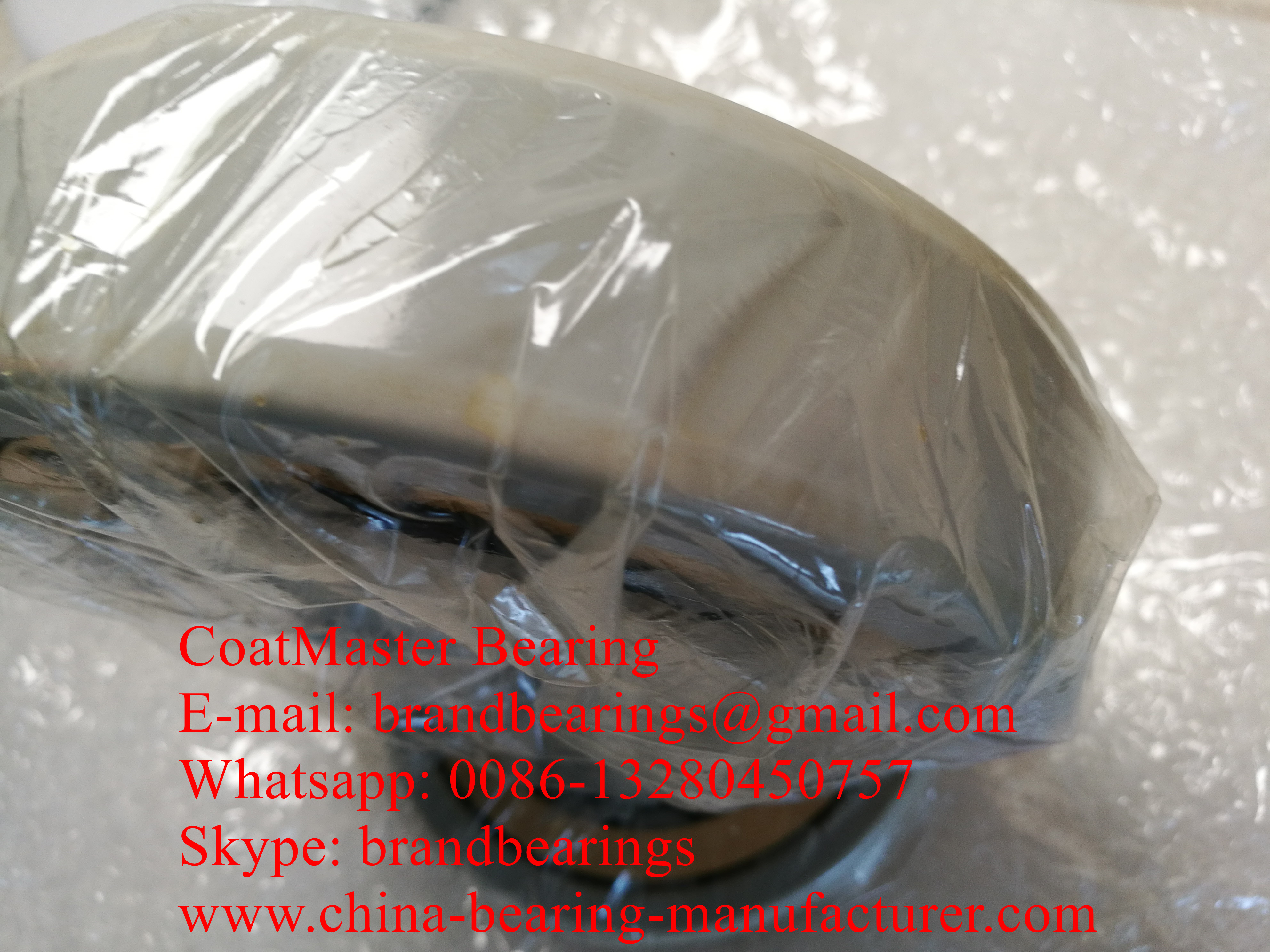

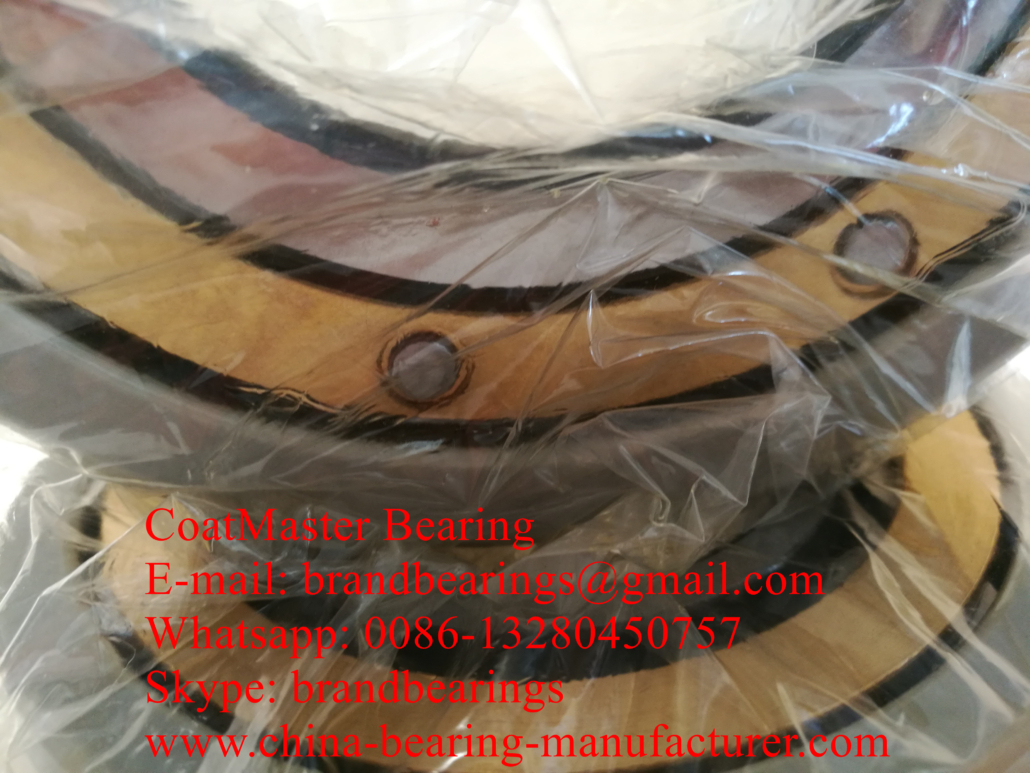

C4 Clearance Brass Cage 6316 MC4VL0241 Electrically Insulated Ball Bearing

Detailed Product Description

Place of Origin: China
Brand Name: CoatMaster
Certification: ISO9001
Model Number: 6316 M/C4VL0241

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box and then put in Carton or Wooden Case
Delivery Time: 5 days after confirmed
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 500 Pcs/Month

Detailed Product Description

Designation: 6316 M/C4VL0241 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 80×170×39 mm
Weight: 4.2 kg Application: Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing 6316 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

The Electrically Insulated Bearing adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing , Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings. The process is constantly being improved.

Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC. Special spraying process can form a layer with uniform thickness and strong adhesion, After further processing, it can be protected from moisture and humidity.

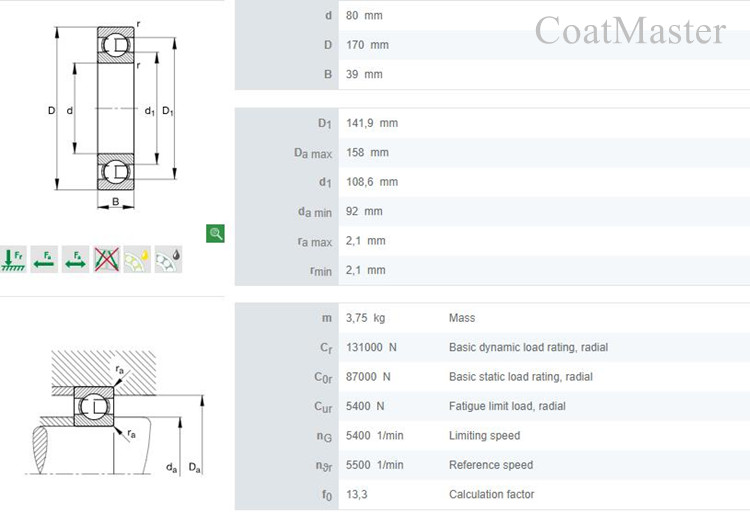

Electrically insulated Rolling Bearings 6316 M/C4VL0241
Principal dimensions 80×170×39mm
Weight 4.2 kg
Basic dynamic load rating-C 130kN
Basic static load rating-Co 86.5kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 5300 r/min

Electrically Insulated Rolling Bearing 6316 M/C4VL0241, As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

Suffix of Electrically Insulated Deep Groove Ball Bearing 6316 M/C4VL0241

VL0241 : Electrically insulating Bearing outer ring

  • Perfect used for small and medium traction motors
  • Its design is based on cylindrical roller bearings and deep groove ball bearings.
  • Outer ring is electrically insulated by alumina coating
  • Basic elimination of premature bearing failure due to stray currents

VL2071: electrically insulating inner ring

  • Perfect used for larger traction motors
  • Alumina coating applied to the outer surface of the inner ring: holes, chamfers and end faces
  • Improved electrical insulation characteristics compared to coated outer ring design VL0241
  • Reduced capacitance due to the small surface area of the coating
  • Increased electrical impedance

XRB is the China bearing manufacturer & exporter & supplier, it can supply 6316 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6316-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
