Detailed Product Description

Designation: NJ320 ECM/C4VA301 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 or C3 clearance Dimension: 100×215×47 mm
Weight: 8.6 kg Application: Electric Traction Motors

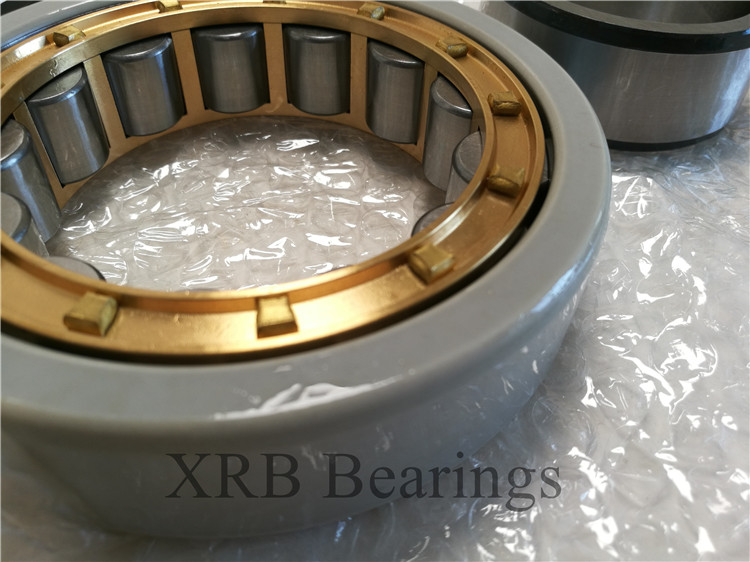

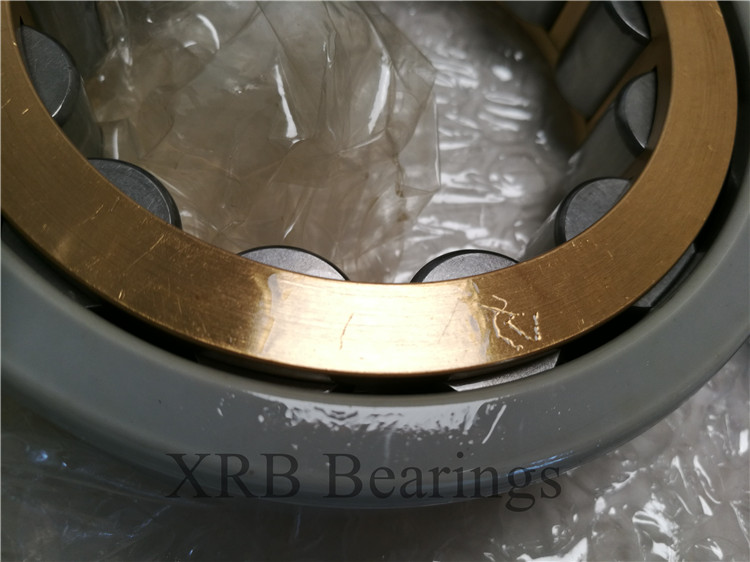

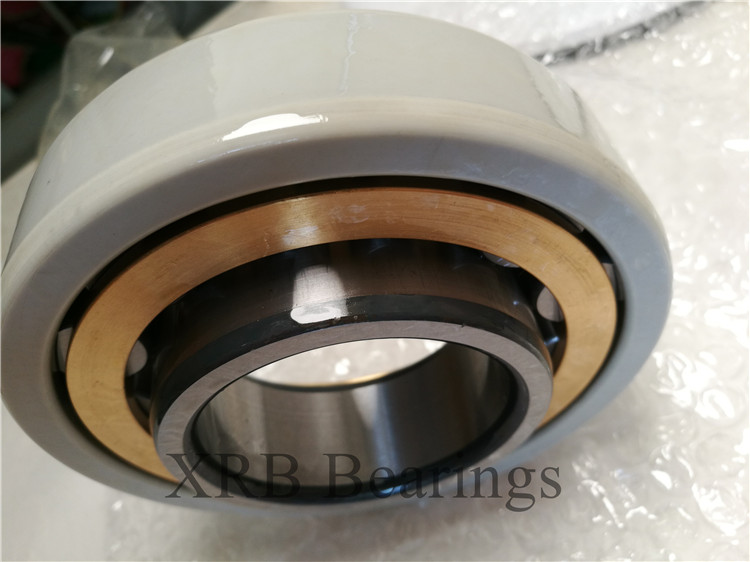

Electric Insulated Cylindrical roller Bearing NJ320 ECM/C4VA301 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel rollers, Its dimension are the same with normal chrome steel NJ320 ECM/C4 Cylindrical roller Bearing.

Features and Benefits of CoatMaster Electrically Insulated rolling Bearings NJ320 ECM/C4VA301

The same with normal Cylindrical roller bearing, Electrically Insulated Cylindrical Roller Bearing NJ320 ECM/C4VA301 is one kind of rolling bearing, it consist of Inner Ring, outer ring, cage and steel rollers, the cylindrical roller and raceway of the rings are line contact, so cylindrical roller bearings are the same with spherical roller bearing, tapered roller bearing, thrust roller bearing and the other kinds of roller bearings, they all have larger load capacity than ball bearings, cylindrical roller bearing mainly carry radial load, Small friction between the rollers and the ribs of the rings make the cylindrical roller bearings are suitable for the application which are high speed rotation.

There are many different design according to the ribs of the rings, NU, NJ, NUP, N, NF series single row cylindrical roller bearing, NNU, NN series double row cylindrical roller bearing.
Electrically insulated Rolling Bearings NJ320 ECM/C4VA301

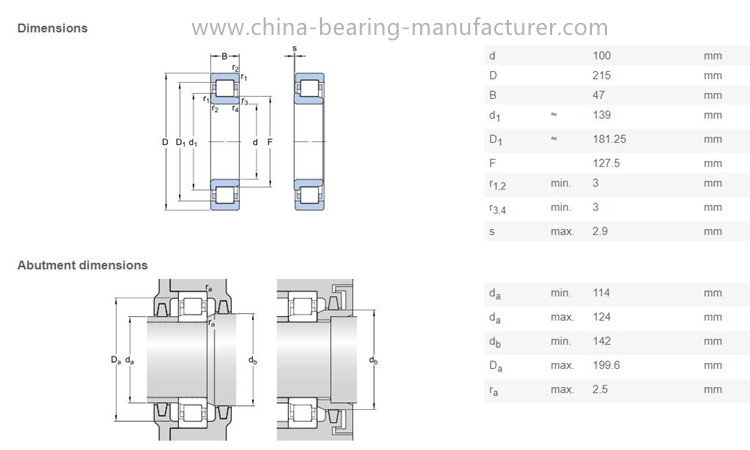

Principal dimensions 100×215×47 mm
Weight 8.6 kg
Basic dynamic load rating-C: 450kN
Basic static load rating-Co: 440kN
Fatigue load limit-Pu: 0 kN
Reference speed: 0 r/min
Limiting speed: 3800 r/min
Electrically Insulated Rolling Bearing as a Preventive Measure

The Electrically Insulated Cylindrical Roller Bearing NJ320 ECM/C4VA301 adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing, Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings . The process is constantly being improved. Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC. Special spraying process can form a layer with uniform thickness and strong adhesion , After further processing, it can be protected from moisture and humidity.

XRB is the China bearing exporter & supplier, it can supply NJ320 ECM/C4VA301 bearing, Our large quantity Electrically insulated Cylindrical Roller Bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG NJ320-M-J20AA-C4 Bearing, the other type and brand Electrically insulated Cylindrical Roller bearing, insocoat tapered roller bearing, Current-Insulated Bearings.

More questions, please contact our sales team.
