Detailed Product Description

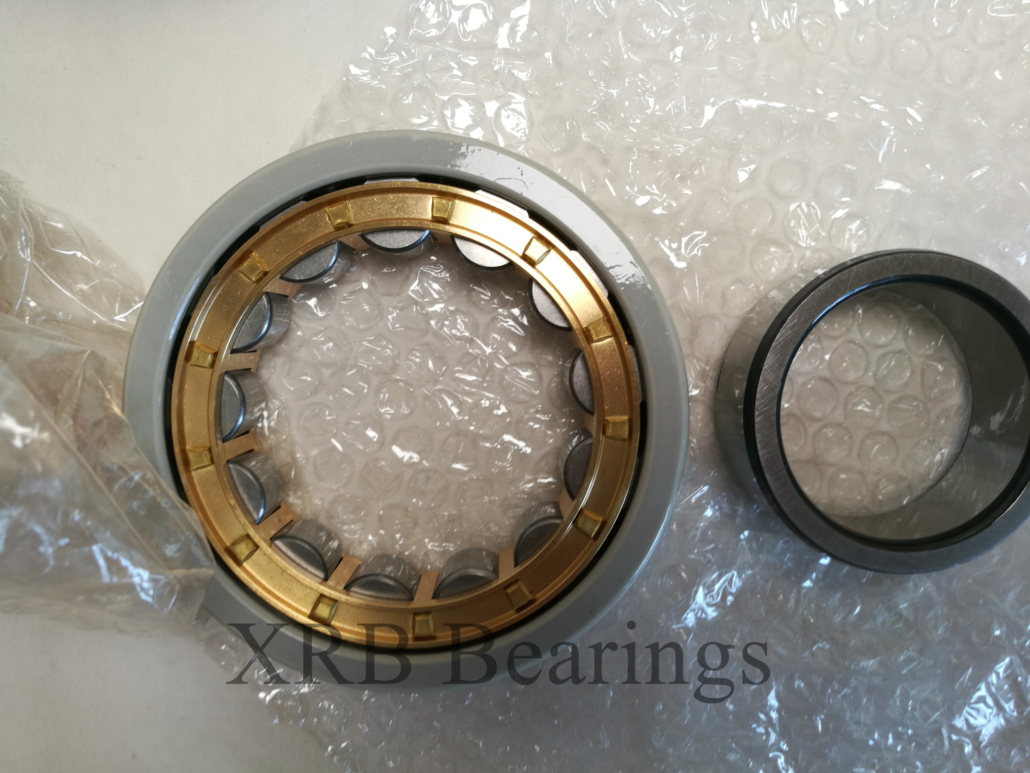

Designation: NU324 ECM/C4VA301 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 120×260×55 mm
Weight: 15 kg Application: Electric Traction Motors

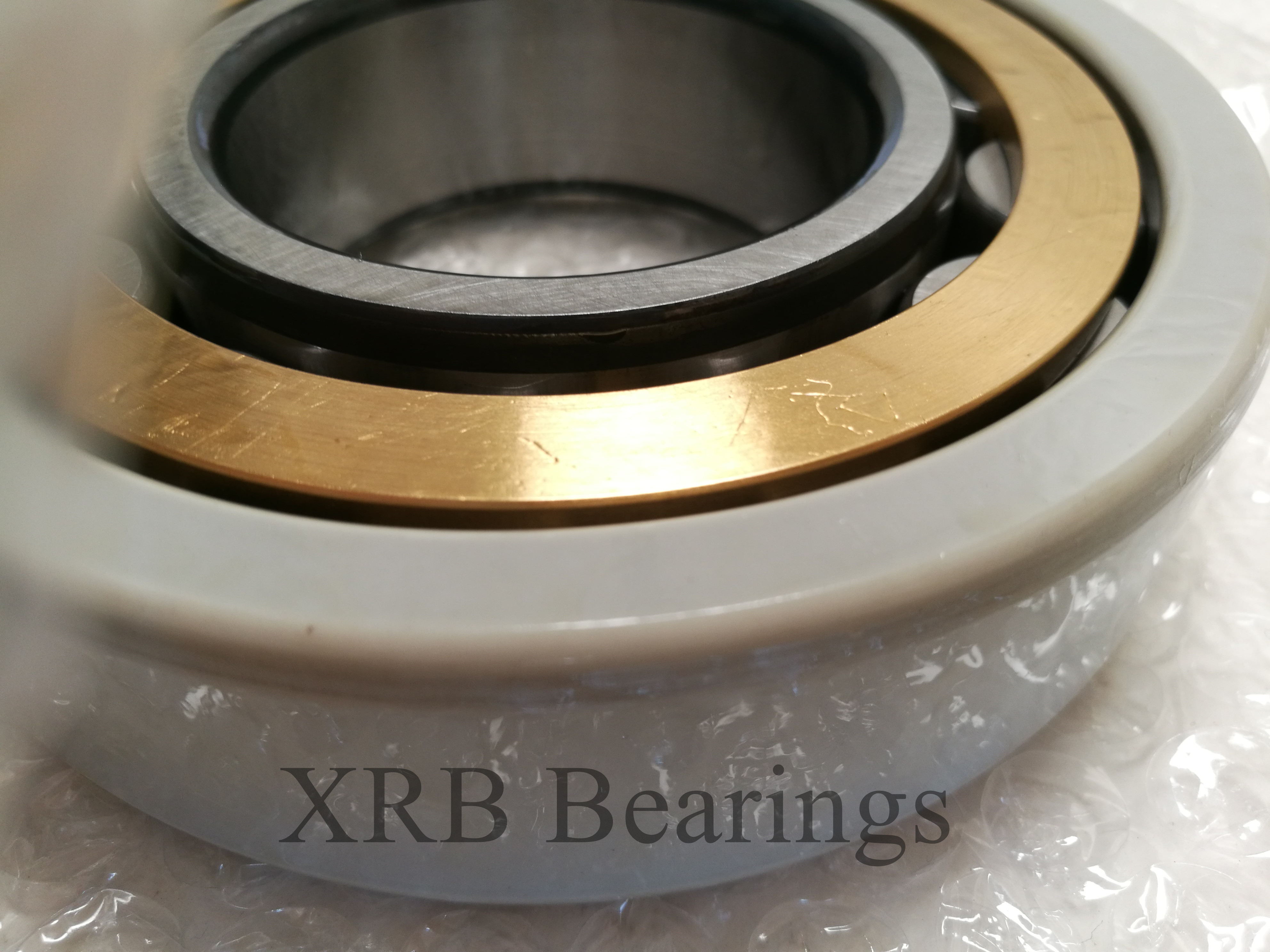

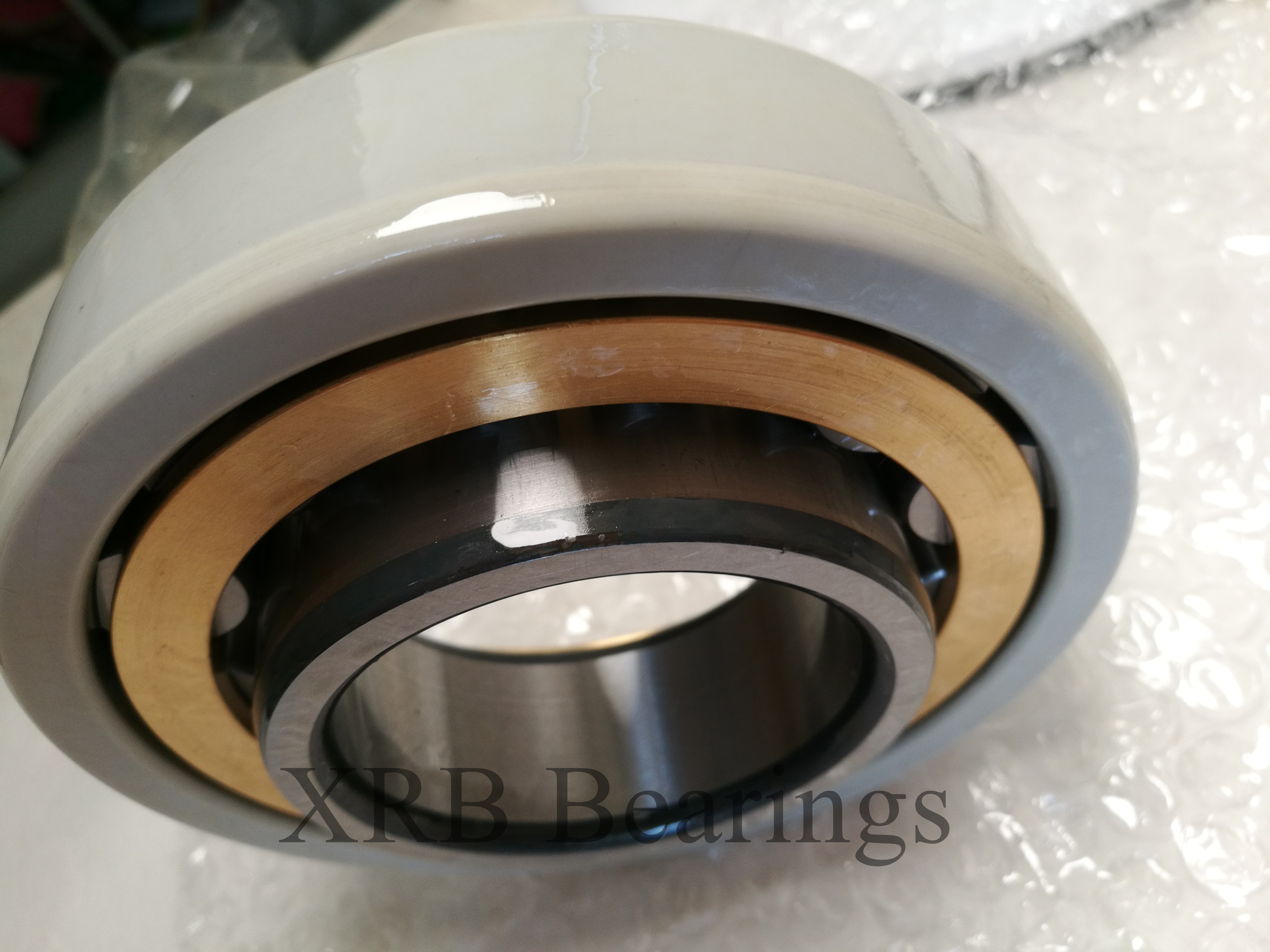

Electric Insulated Cylindrical Roller Bearing NU324 ECM/C4VA301 With Outer Ring Coating for Rigid Coupling Drives consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel NU324 ECM/C4 Cylindrical Roller Bearing.provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

Dimensions Of NU324 ECM/C4VA301 Electrically Insulated Cylindrical Roller Bearing

In most cases, power output determines shaft size, and shaft size determines the bore diameter of the bearings. In recent years, the tendency has been to use bearings with smaller cross sections because they require less space.

Loads of Electrically Insulated Rolling Bearing NU324 ECM/C4VA301

In order to select the best bearing for a particular application, all operational loads should be taken into account. In addition to the weight of the components, the forces created when power is transmitted, such as those listed below, should also be considered:

  • the magnetic pull resulting from asymmetrical air gaps
  • dynamic forces due to misalignment
  • out of balance forces
  • forces due to pitch errors in gears
  • thrust loads

Loads can be radial, axial or a combination of the two. In cases where there are heavy loads,

Electrically insulated Rolling Bearings NU324 ECM/C4VA301
Principal dimensions 120×260×55mm
Weight 15 kg
Basic dynamic load rating-C: 0kN
Basic static load rating-Co: 0kN
Fatigue load limit-Pu: 0 kN
Reference speed: 0 r/min
Limiting speed: 3200 r/min


Electrically Insulated Cylindrical Roller Bearing NU324 ECM/C4VA301 provide a bearing function and electrical insulation , virtually eliminates premature bearing failure caused by stray electric currents , electrical insulated bearing can reduce the number of failures and improve the machine uptime , reduce the cost of maintenance.

Principle bearing types for traction motor applications

  • cylindrical roller bearings
  • electrically insulated CoatMaster cylindrical roller bearings
  • electrically insulated CoatMaster deep groove ball bearings
  • hybrid cylindrical roller bearings with ceramic rollers
  • hybrid deep groove ball bearings with ceramic balls
  • traction motor bearing units based on cylindrical roller bearings and deep groove ball bearings
  • Sensorised traction motor bearing unit
  • Regreasable traction motor bearing unit

The Electrically Insulated NU324 ECM/C4VA301 Cylindrical Roller Bearing adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing, Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings . The process is constantly being improved. Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC. Special spraying process can form a layer with uniform thickness and strong adhesion , After further processing, it can be protected from moisture and humidity.
