Detailed Product Description

Designation: NJ219 ECM/C3VA301 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C3 Dimension: 95×170×32 mm
Weight: 3.5 kg Application: Electric Traction Motors

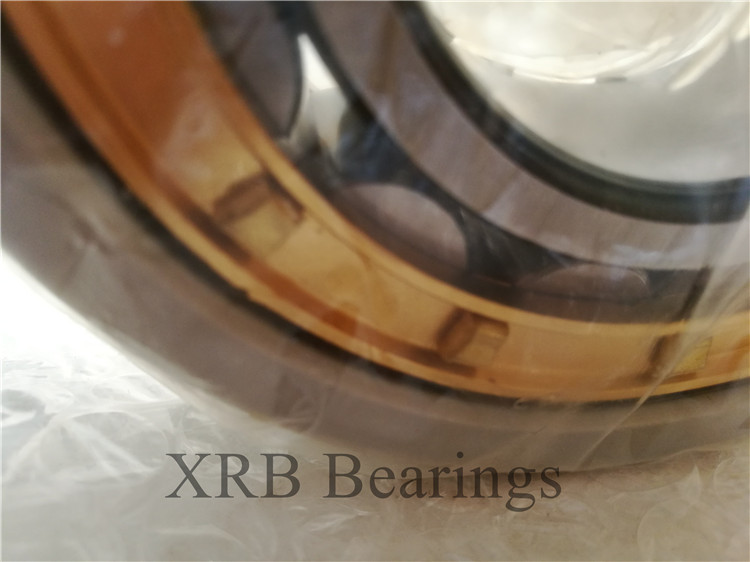

Electric Insulated Cylindrical Roller Bearing NJ219 ECM/C3VA301 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

Electric Insulated Cylindrical Roller Bearing NJ219 ECM/C3VA301 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel NJ219 ECM/C3VA301 Cylindrical Roller Bearing.

Features and Benefits of CoatMaster Electrically Insulated rolling Bearings NJ219 ECM/C3VA301

VL0241 : electrically insulating outer ring

  • Perfect used for small and medium traction motors
  • Its design is based on cylindrical roller bearings and deep groove ball bearings.
  • Outer ring is electrically insulated by alumina coating
  • Basic elimination of premature bearing failure due to stray currents

VL2071: electrically insulating inner ring

  • Perfect used for larger traction motors
  • Alumina coating applied to the outer surface of the inner ring: holes, chamfers and end faces
  • Improved electrical insulation characteristics compared to coated outer ring design VL0241
  • Reduced capacitance due to the small surface area of the coating
  • Increased electrical impedance

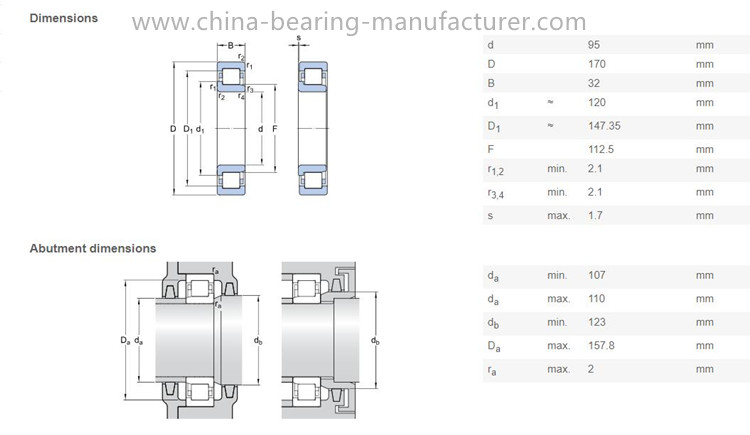

Electrically insulated Rolling Bearings NJ219 ECM/C3VA301
Principal dimensions 95×170×32mm
Weight 3.5 kg
Basic dynamic load rating-C: 255kN
Basic static load rating-Co: 265kN
Fatigue load limit-Pu: 0 kN
Reference speed: 0 r/min
Limiting speed: 4800 r/min

Electrically Insulated Rolling Bearing as a Preventive Measure

As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

Features and Benefits of NJ219 ECM/C3VA301 Electrically Insulated Bearings

  • Oxide ceramic coatings (J20…) provide a high level of insulation. Plasma spraying is used to apply these coatings to the bearing surfaces
  • Thanks to a special sealant, the J20AA coating retains its insulating properties even in a damp environment. The resulting oxide ceramic coating is very hard, wear resistant, and a good thermal conductor.
  • The external dimensions of the current-insulated rolling bearings are in accordance with DIN 616 (ISO 15). This means that they are interchangeable with standard bearings.
  • For special applications, such as those with a rotating outer ring, we recommend using an inner ring coated with J20C.
  • Starting with the 62-series and up, coated deep-groove ball bearings are available in both open and sealed versions (with lip seals on one or both sides). This enables the user to also benefit from the advantages offered by for-life lubrication.

XRB is the China bearing exporter & supplier, it can supply NJ219 ECM/C3VA301 Electrically Insulated bearing, Our large quantity Electrically insulated Cylindrical Roller bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG NJ219-M-J20AA-C3 Bearing, the other type and brand Electrically insulated Cylindrical Roller bearing, insocoat tapered roller bearing, Current-Insulated Bearings.

More questions, please contact our sales team.
