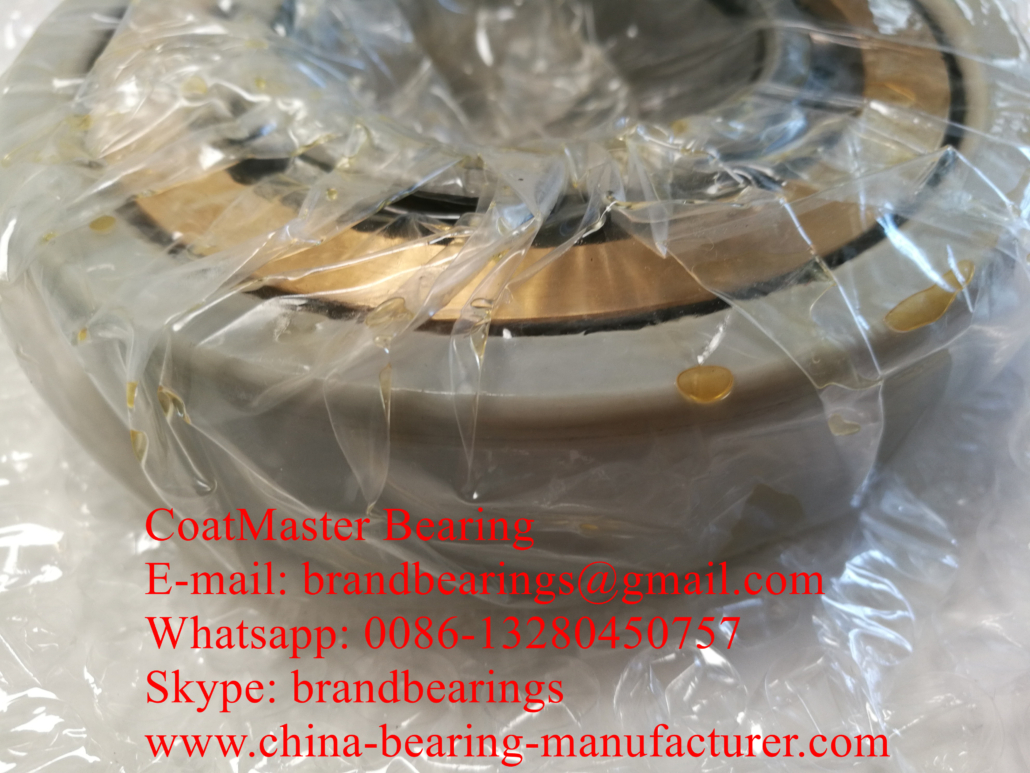

Outer ring Coated Electrically Insulated Bearing 6314 M/C4VL0241

Detailed Product Description

Place of Origin: China
Brand Name: CoatMaster
Certification: ISO9001
Model Number: 6314 M/C4VL0241

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box and then put in Carton or Wooden Case
Delivery Time: 5 days after confirmed
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 500 Pcs/Month

Detailed Product Description

Designation: 6314 M/C4VL0241 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 70×150×35 mm
Weight: 3 kg Application: Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing 6314 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

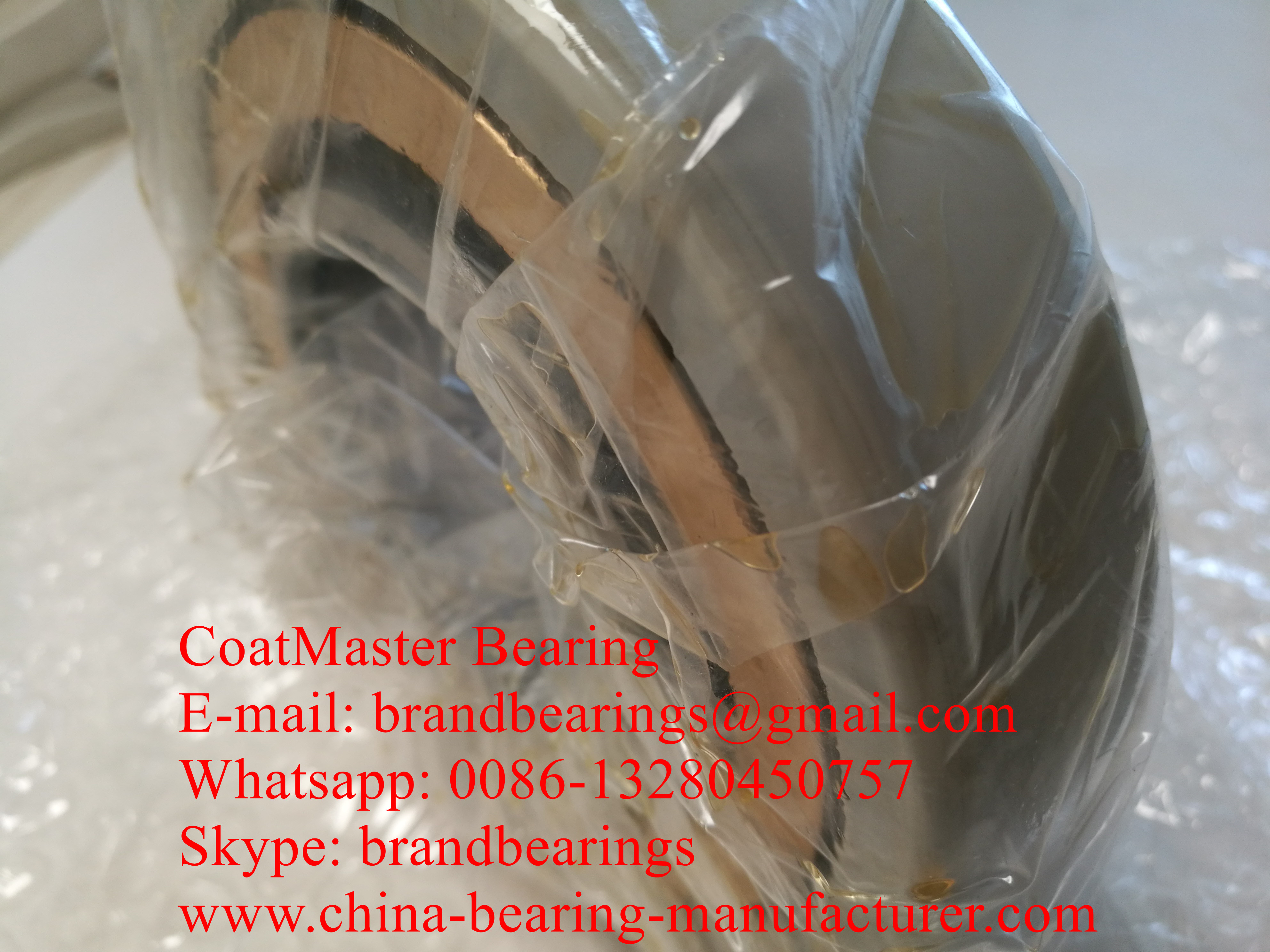

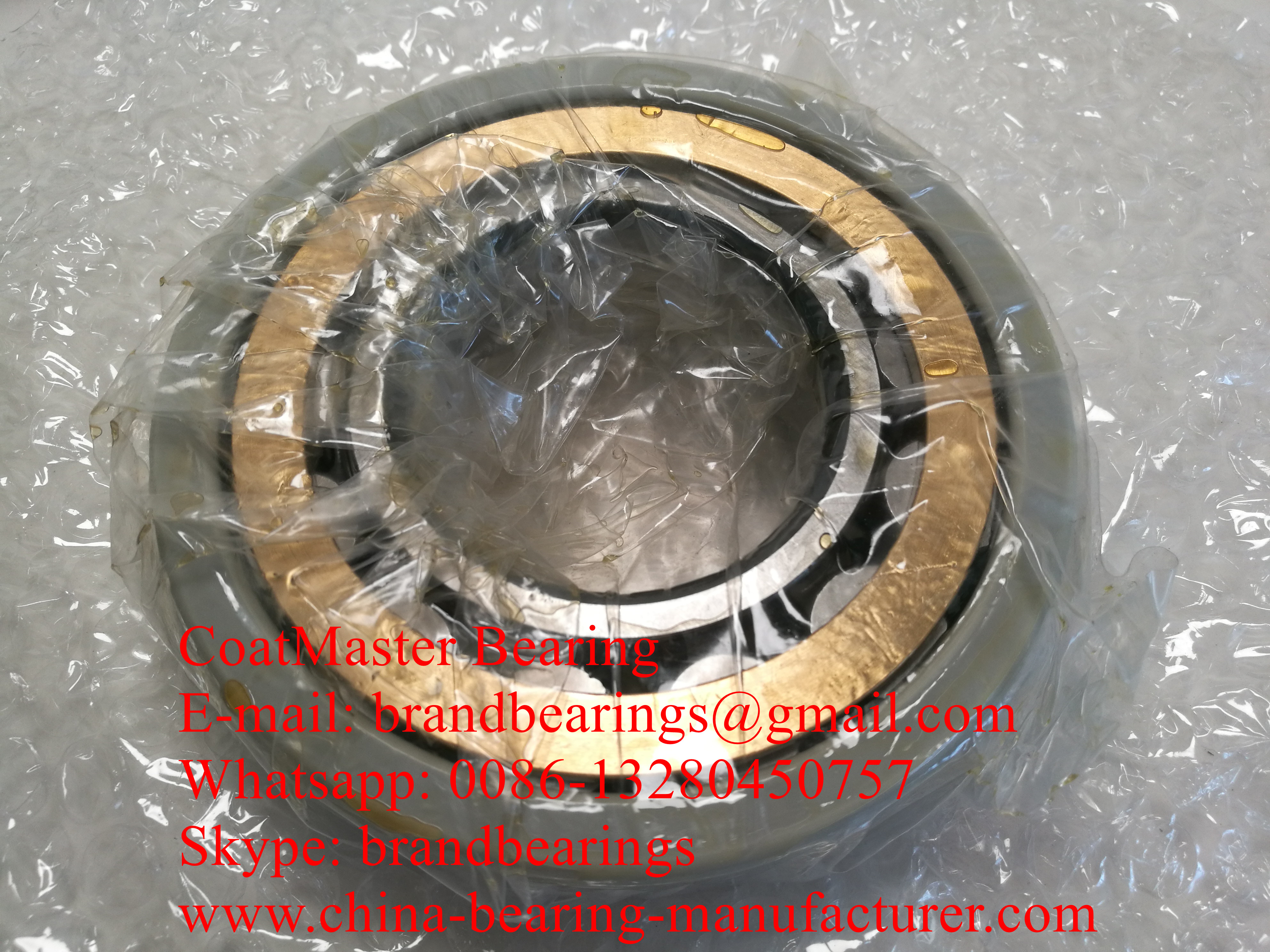

CoatMaster provides  6314 M/C4VL0241 electrically insulated bearings, to protect against damages caused by electric currents. These bearings have an electrically insulating coating on theouter ring (VL0241 execution), or on the inner ring (VL2071 execution). The inner ring coating can be made from bore diameters above and including 70 mm. The coating consists of a nominal 100-µm thick aluminium oxide layer and is applied by a unique coating process using plasma-spraying technology.

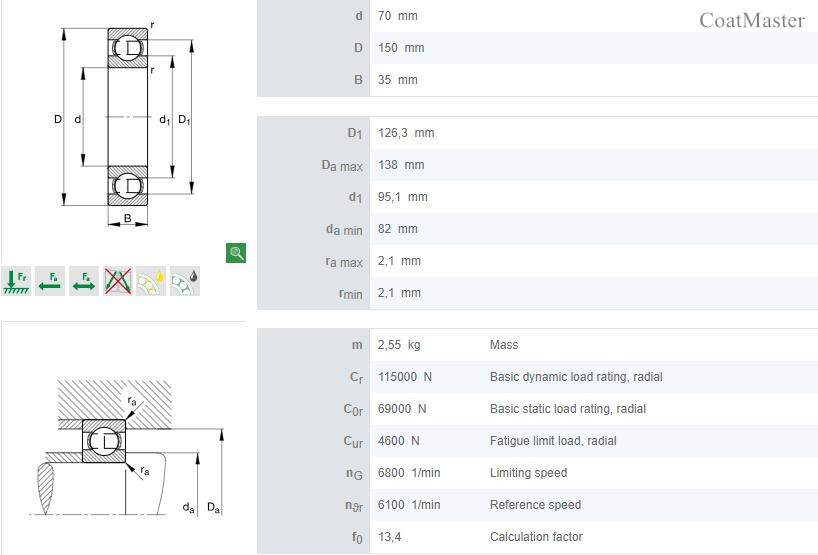

Electrically insulated Rolling Bearings 6314 M/C4VL0241
Principal dimensions 70×150×35mm
Weight 3 kg
Basic dynamic load rating-C 111kN
Basic static load rating-Co 68kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 6300 r/min
Electrically Insulated Rolling Bearing as a Preventive Measure
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

China CoatMaster Electric Insulated bearing have an electrically insulating coat on the outer ring (suffix VL0241) or on the inner ring (suffix VL2071), respectively. Electrically Insulated Bearing are widely used in Electric Motors, generator, Alternator. there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC, insulated & insocoat bearing can keep away from moisture and humidity, it can carry radial and axial loads in both directions.

Electric Insulated bearing used in:

  • wheelsets and traction motors (rail vehicles)
  • DC and AC motors (drivetrains)
  • generators (wind power)

CoatMaster is the China bearing exporter & supplier, it can supply 6314 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6314-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
