CoatMaster 6012 M/C4VL0241 Electrically Insulated Ball Bearings for Traction Motor replace SKF

Detailed Product Description

Designation:	6012 M/C4VL0241	Coating:	Aluminium Oxide Coating
Electrical Resistance:	Voltages Up To 3000 V DC	Cage:	Brass
Cleance:	C4, C3, Co are available	Dimension:	60×95×18 mm
Weight:	0.5 kg	Application:	Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing 6012 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

Electric Insulated Deep Groove Ball Bearing 6012 M/C4VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6012 M/C4 Deep Groove Ball Bearing.

Features and Benefits of CoatMaster Electrically Insulated rolling Bearings


Electrically insulated Rolling Bearings 6012 M/C4VL0241

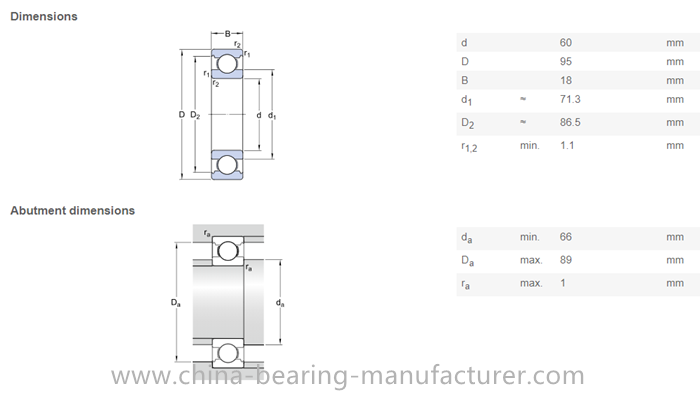

Principal dimensions 60×95×18mm

Weight 0.5 kg

Basic dynamic load rating-C 29.6kN

Basic static load rating-Co 23.2kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 9500 r/min

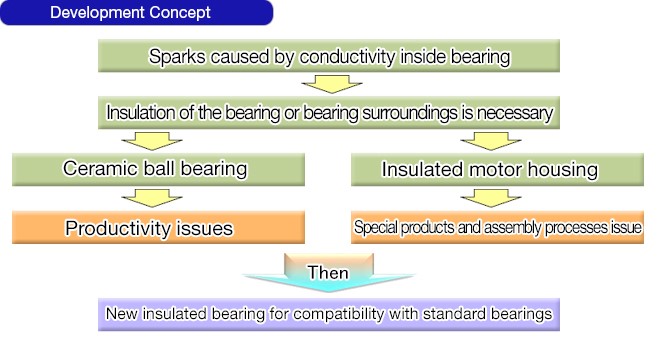

Electrically Insulated Rolling Bearing as a Preventive Measure

As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

1. High insulation properties

To prevent electric corrosion in bearings, a highly productive aluminum ceramic coating material is used to coat the outer ring, and by combining optimized additives, insulation performance is improved by about tenfold.

2. Improved durability

• Optimizing bearing elements improves film impact resistance by a factor of 3x.
• Optimized ceramic coating materials makes for excellent heat dissipation.

XRB is the China bearing exporter & supplier, it can supply 6012 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6012-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
