Detailed Product Description

Designation: NU330 ECM/C4VA301 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 150×320×65 mm
Weight: 26.5 kg Application: Electric Traction Motors

Electrically Insulated Cylindrical Roller Bearing NU330 ECM/C4VA301 with Good availability and adequate lead time

Electric Insulated Cylindrical Roller Bearing NU330 ECM/C4VA301 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

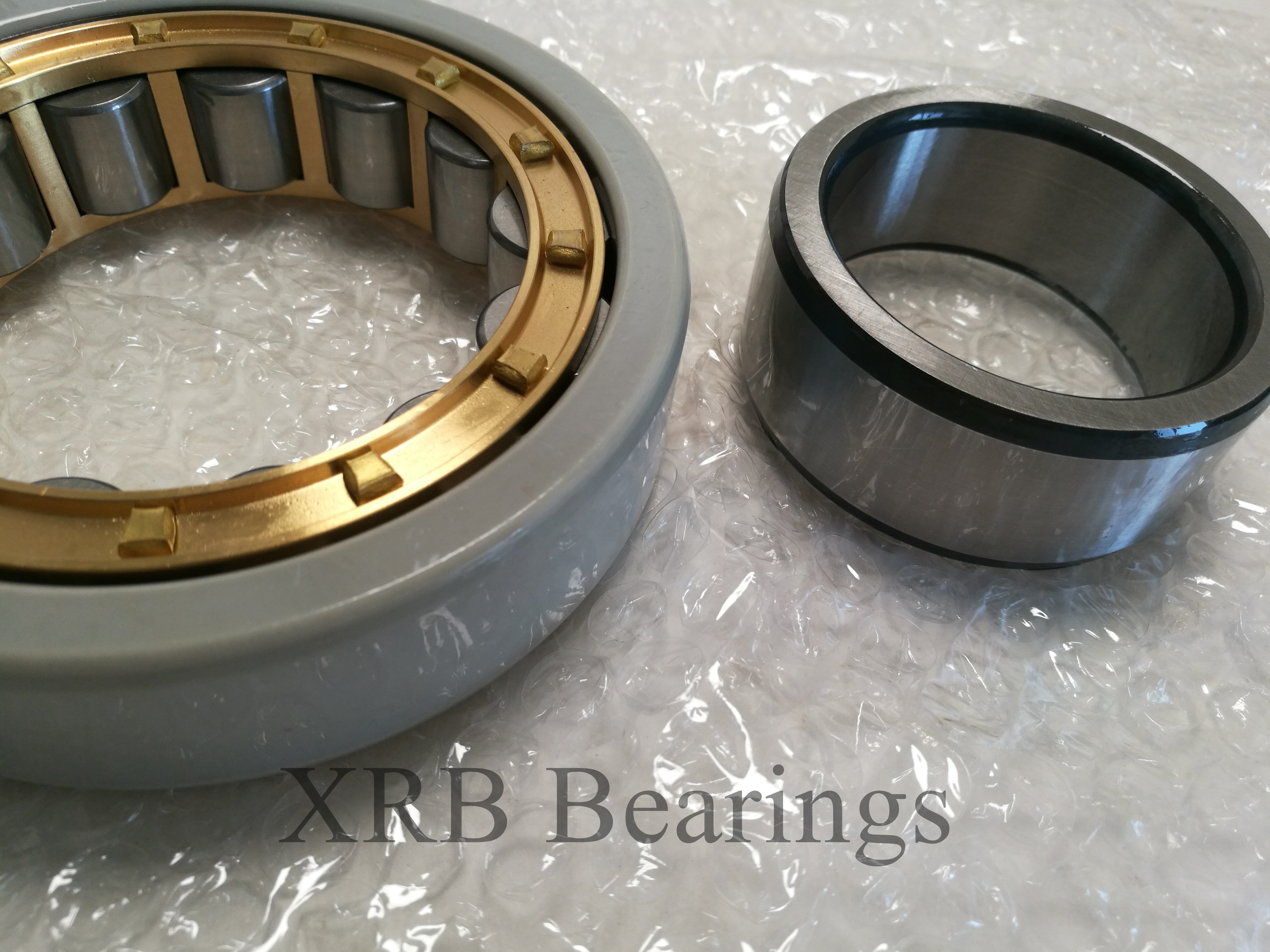

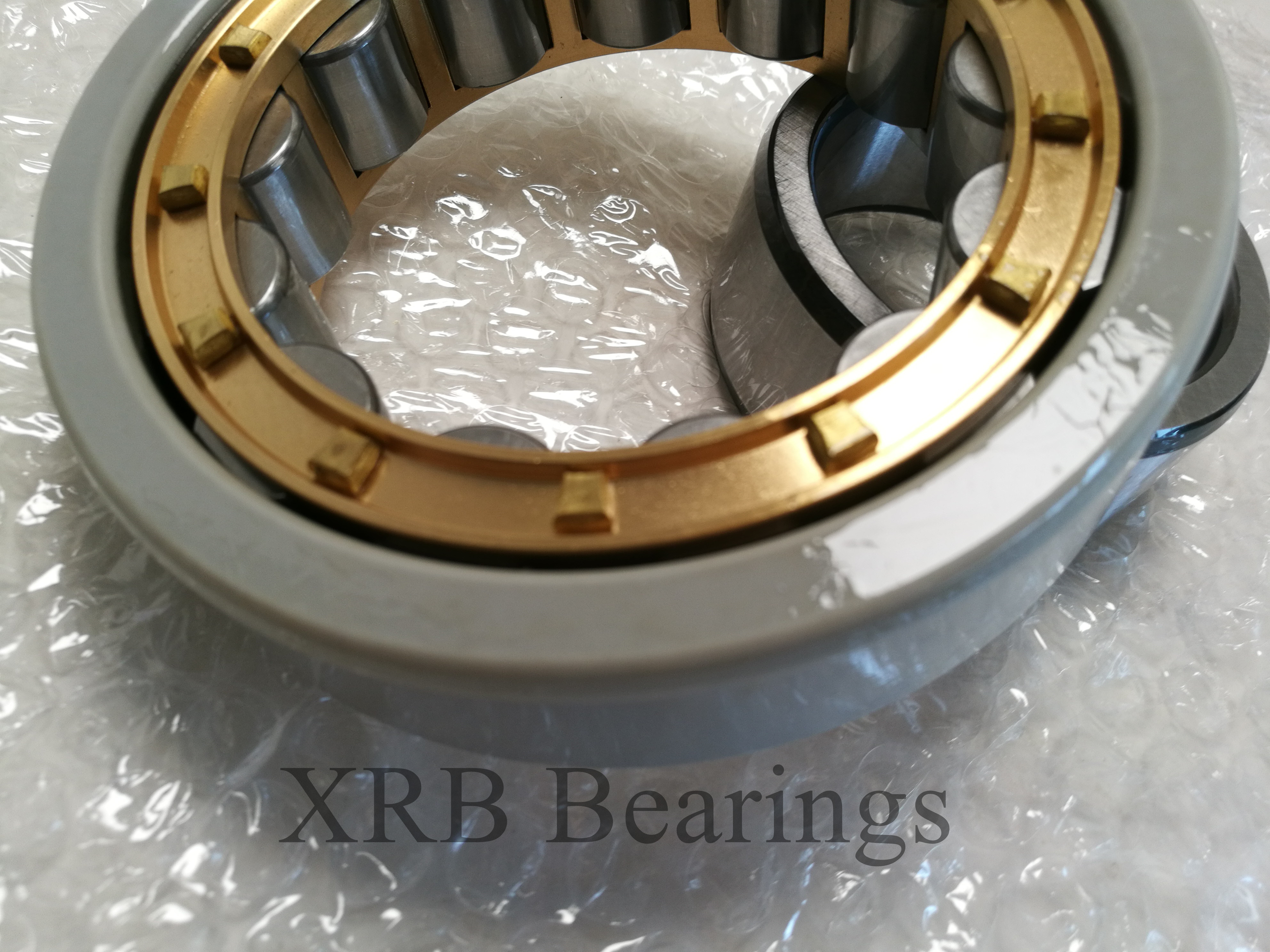

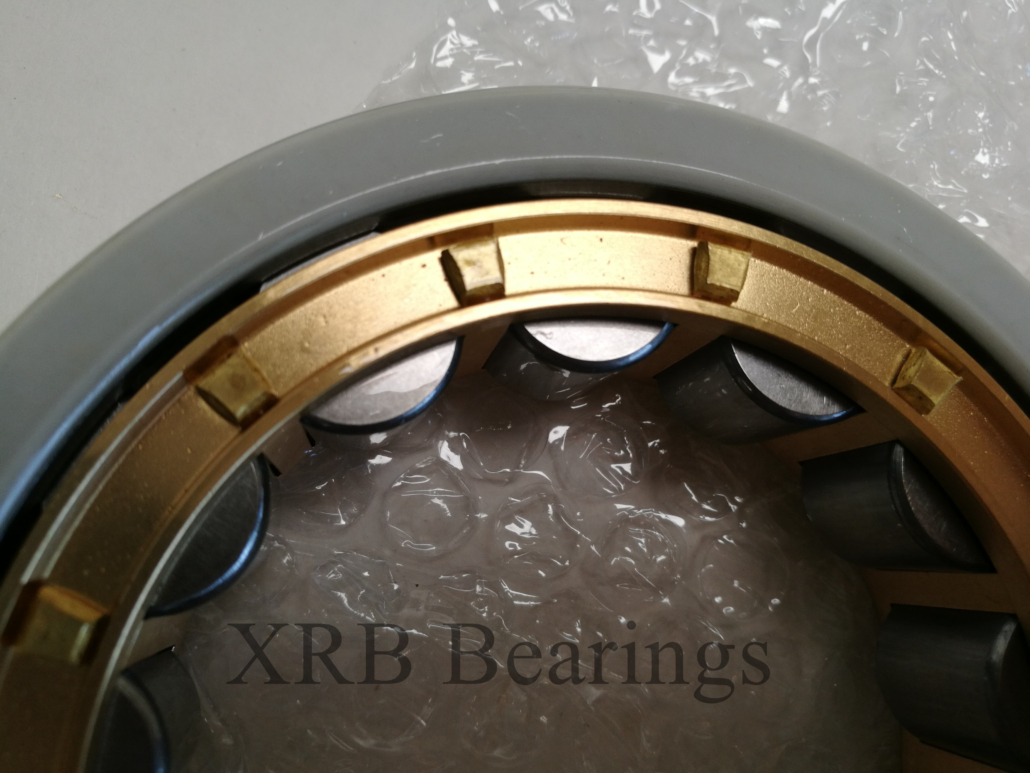

Electric Insulated Cylindrical Roller Bearing NU330 ECM/C4VA301 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel NU330 ECM/C4 Cylindrical Roller Bearing.

Electrically Insulated Bearing NU330 ECM/C4VA301 can protect the machine to be exposed to electrical current. In a worst-case scenario, this can damage raceways and rolling elements, which in turn, causes the motor or generator to fail prematurely and without warning. On top of the extra expenses incurred for repairs, this also means additional costs caused by machine downtime and the resulting production losses.

Electrically insulated Rolling Bearings NU330 ECM/C4VA301
Principal dimensions 150×320×65mm
Weight 26.5 kg
Basic dynamic load rating-C: 900kN
Basic static load rating-Co: 965kN
Fatigue load limit-Pu: 100 kN
Reference speed: 2200 r/min
Limiting speed: 2600 r/min

Electrically Insulated Bearing are not only Electrically Insulated deep groove ball Bearing, but also Electrically Insulated Cylindrical Roller Bearing, Electrically Insulated Tapered Roller Bearing, Electrically Thrust Roller Bearing and the other type Normal or Non-Standard Electrically Insulated Rolling Bearings. they are the same dimension, same cage, same elements and the other data with normal chrome steel rolling bearing, just the different coating on the surface of the inner ring or outer ring of the Rolling Bearing.

A much more economical solution is to provide for the use of Electrically Insulated Bearing NU3301 ECM/C4VA301 during the planning stage. This reduces maintenance and repair costs, and increases machine availability – all of which means greater value for the customer.

XRB is the China bearing manufacturer & exporter & supplier, it can supply CoatMaster NU330 ECM/C4VA301 Electrically Insulated Cylindrical Roller bearing, Our large quantity Electrically Insulated Cylindrical Roller bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG NU330 M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.

More questions, please contact our sales team.
