Detailed Product Description

Designation: 6320 M/C3VL0241 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C3 or C4 Dimension: 100×215×47 mm
Weight: 8.1 kg Application: Electric Traction Motors

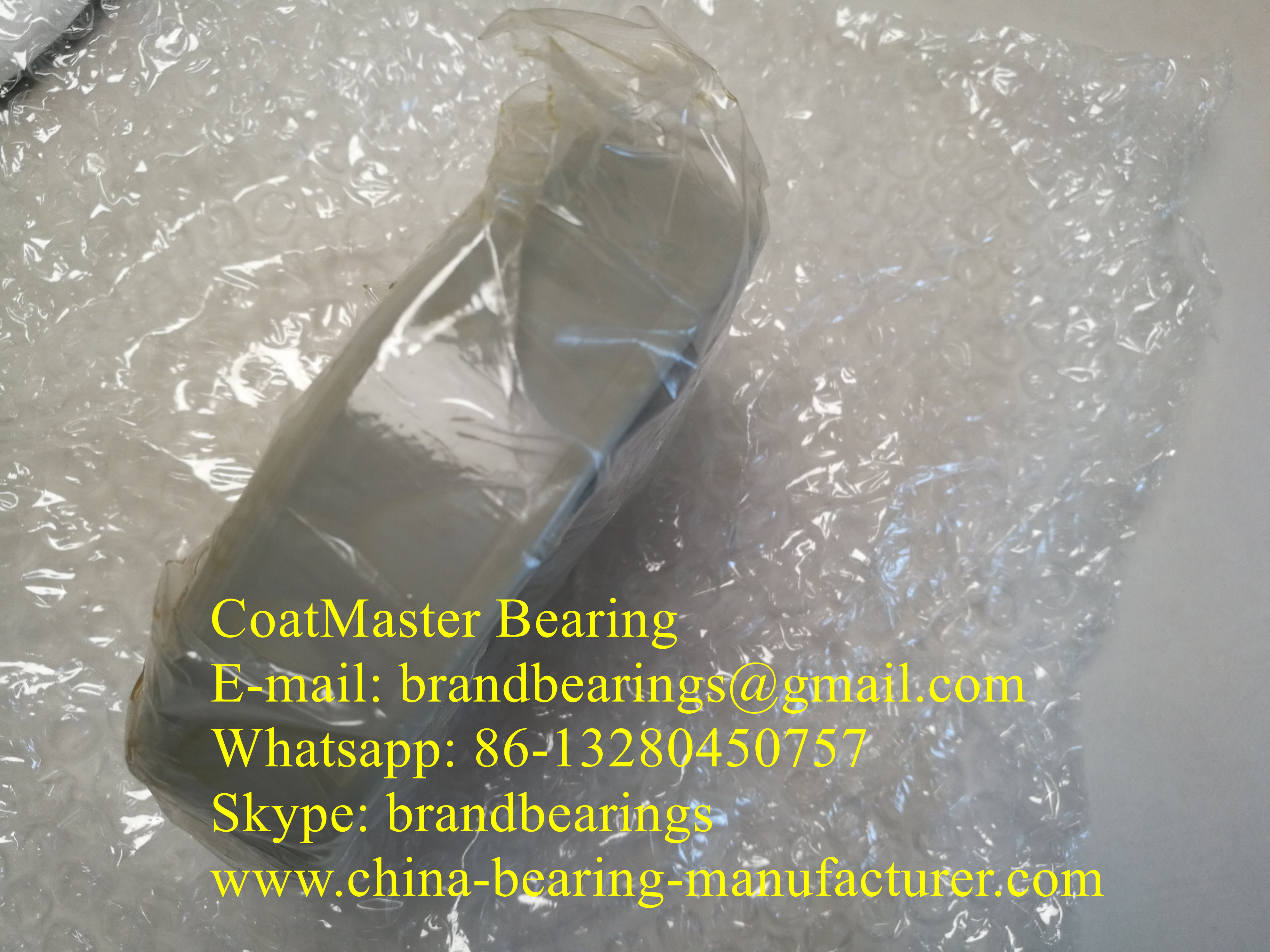

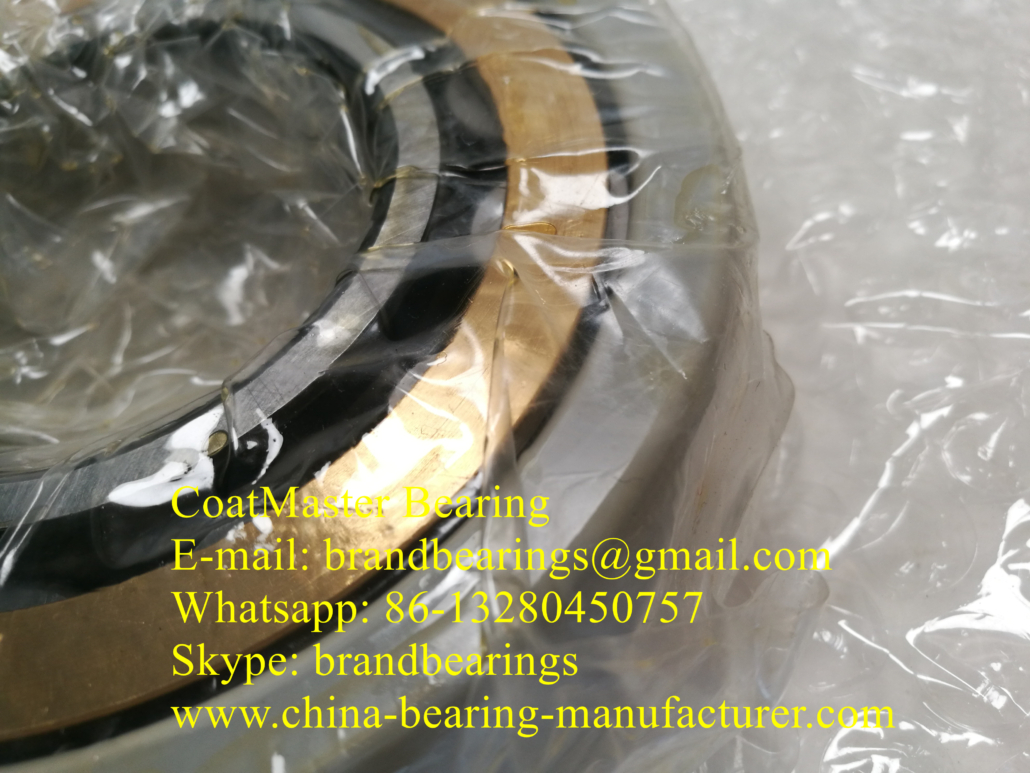

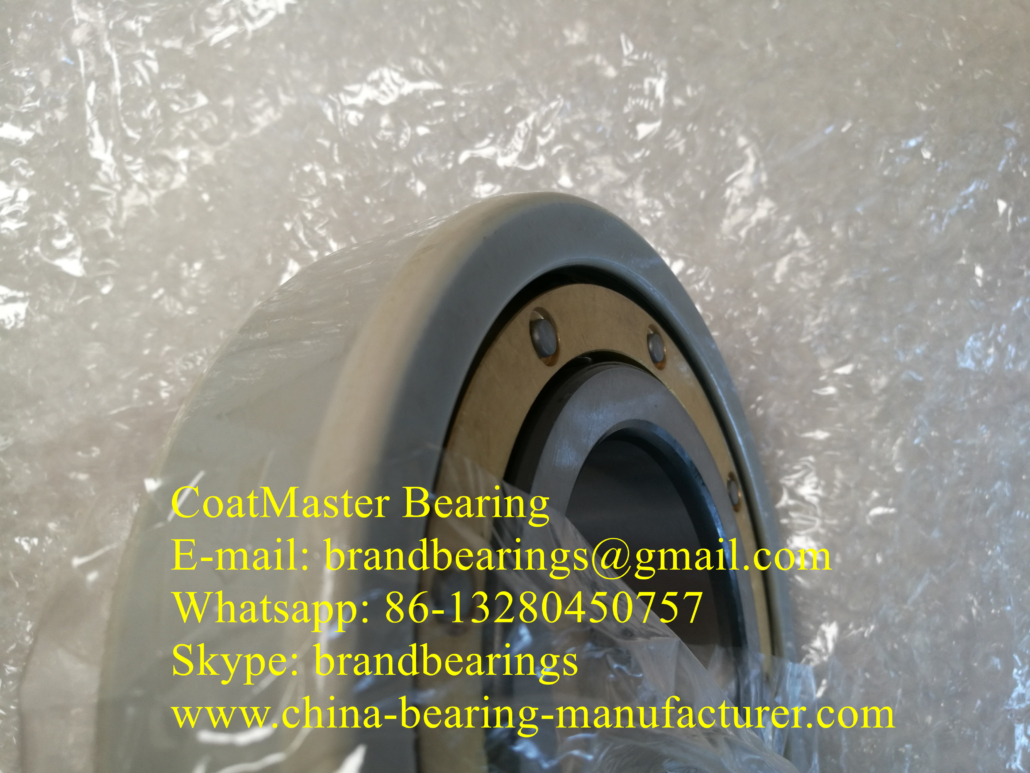

Electric Insulated Deep Groove Ball Bearing 6320 M/C3VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

Features and Benefits of CoatMaster 6320M/C3VL0241 Electrically Insulated rolling Bearings

VL0241 : electrically insulating outer ring

  • Perfect used for small and medium traction motors
  • Its design is based on cylindrical roller bearings and deep groove ball bearings.
  • Outer ring is electrically insulated by alumina coating
  • Basic elimination of premature bearing failure due to stray currents

Electrically insulated Rolling Bearings 6320 M/C3VL0241

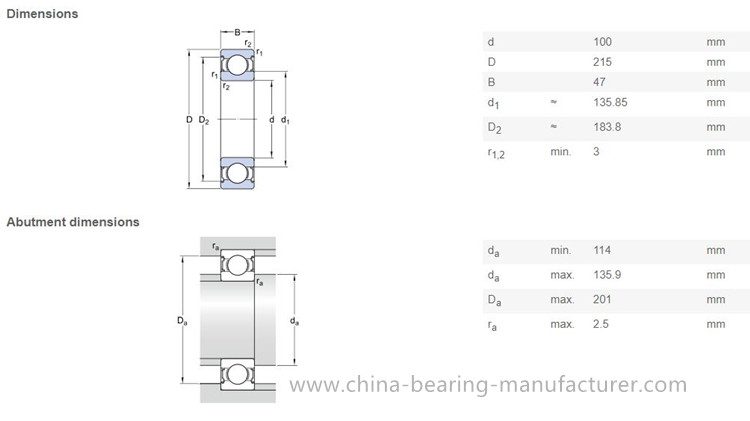

Principal dimensions 100×215×47mm
Weight 8.1 kg
Basic dynamic load rating-C: 174kN
Basic static load rating-Co: 140kN
Fatigue load limit-Pu: 4.75 kN
Reference speed: 6700 r/min
Limiting speed: 4300 r/min

Electrically Insulated 6320 M/C3VL0241 deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

Electrically Insulated 6320 M/C3VL0241 deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped may have recesses in the outer ring.

Sealing solutions

The most popular sizes of Electrically Insulated 6320 M/C3VL0241 deep groove ball bearings can be obtained (supplied) capped with a seal or shield on one or both sides.

Selection guidelines for different sealing solutions under various operating conditions are listed in technical catalogues.


Electrically Insulated 6320 M/C3VL0241 Bearings with shields are primarily intended for applications where the inner ring rotates.

Shields are fitted in the outer ring and do not make contact with the inner ring, but form a narrow gap with it. Shields are made of sheet steel.

Depending on the bearing design, series and size, XRB supplies shields in different designs. Shields identified by the designation suffix Z typically have an extension in the shield bore to form a long, narrow gap with the land of the inner ring shoulder. Some shields do not have the extension.

The Electrically Insulated Bearing adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing, Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings . The process is constantly being improved. Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC.

XRB is the China bearing exporter & supplier, it can supply 6320 M/C3VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6320-M-J20AA-C3 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
