Outer Ring Coated 6319 MC4VL0241 Electrically Insulated Deep Groove Ball Bearing

Detailed Product Description

Place of Origin: China
Brand Name: CoatMaster
Certification: ISO9001
Model Number: 6319 M/C4VL0241

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box and then put in Carton
Delivery Time: 5 days after confirmed
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 1000 Pcs/Month

Detailed Product Description

Designation: 6319 M/C4VL0241 Coating: Outer Ring Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 95×200×45 mm
Weight: 6.5 kg Application: Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing 6319 M/C4VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6310 M/C4 Deep Groove Ball Bearing.

Performance classes of CoatMaster Electrically Insulated bearing

In response to the ever-demanding performance requirements of modern machinery, CoatMaster developed the Explorer performance class of rolling bearings.

CoatMaster Electrically Insulated deep groove ball bearings realized a substantial improvement in performance by optimizing the internal geometry and surface finish of all contact surfaces, redesigning the cage, combining extremely clean and homogenous steel with a unique heat treatment and improving the quality and consistency of the balls.

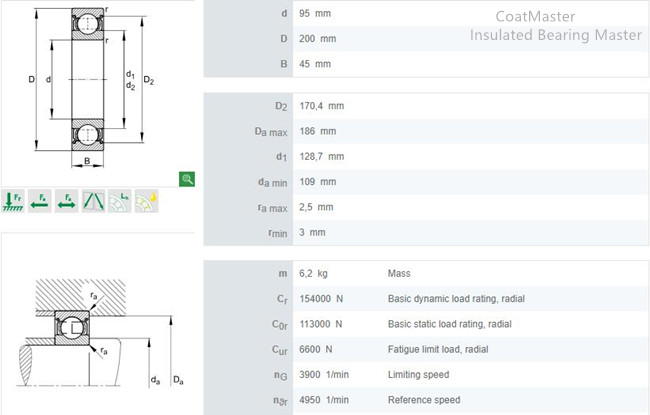

Electrically insulated Rolling Bearings 6319 M/C4VL0241
Principal dimensions 95×200×45mm
Weight 6.5 kg
Basic dynamic load rating-C 159kN
Basic static load rating-Co 118kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 4500 r/min
Electrically Insulated Rolling Bearing 6319 M/C4VL0241 as a Preventive Measure

CoatMaster Electrically Insulated Deep groove ball bearings 6319 M within this performance class provide superior performance especially in applications like electric motors and other applications. These improvements provide the following benefits:

  • higher dynamic load carrying capacity
  • reduced noise and vibration levels
  • less frictional heat
  • significantly longer bearing service life

XRB is the China bearing exporter & supplier, it can supply 6319 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6319-M-J20AA-C4 Bearing, NSK 6319 M/C4 Electrically Insulated Bearings, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
