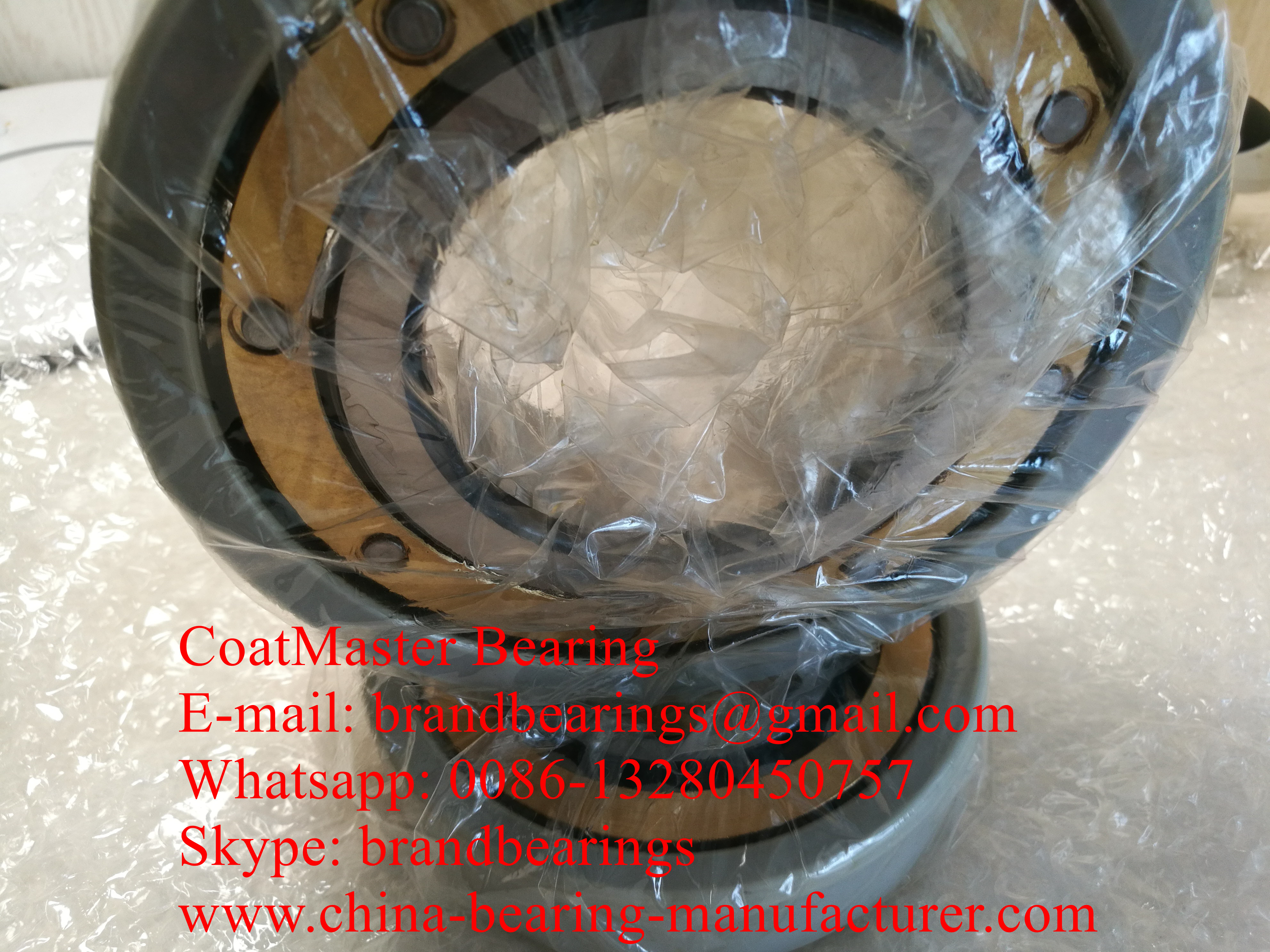

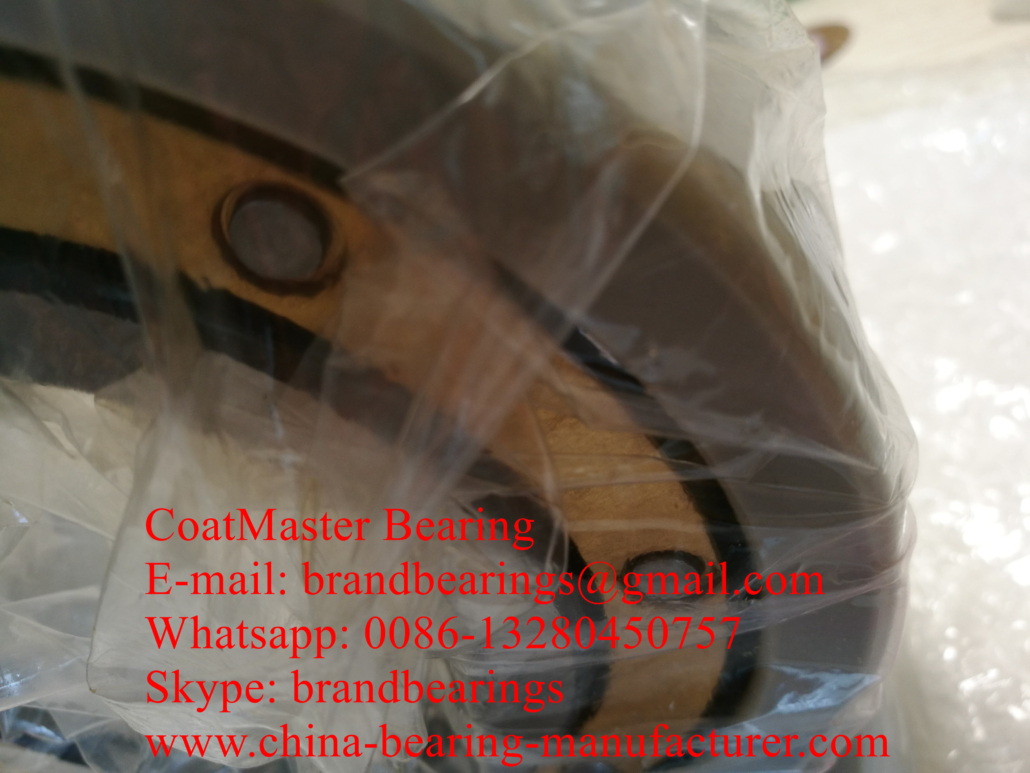

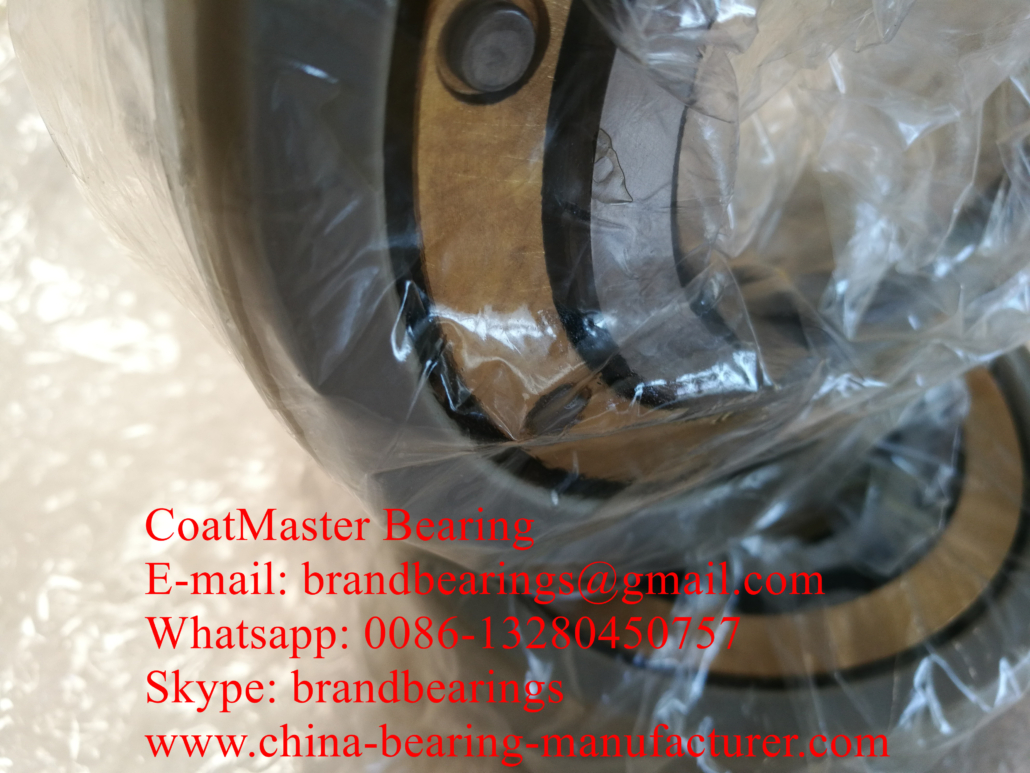

High Temperature P65H Precision 6318 M/P65HS0VL0241 With Outer Ring Coated

Detailed Product Description

Place of Origin: China
Brand Name: CoatMaster
Certification: ISO9001
Model Number: 6318 M/P65HS0VL0241

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box and then put in Carton
Delivery Time: 5 days after confirmed
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 1000 Pcs/Month

Detailed Product Description

Designation: 6318 M/P65HS0VL0241 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C3 Dimension: 90×190×43mm
Weight: 5.8 kg Application: Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing 6318 M/P65HS0VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

CoatMaster Electrically Insulated Deep groove ball bearings 6318 M/P65HS0VL0241 are particularly versatile. They are simple in design, non-separable, suitable for high and very high speeds and are robust in operation, requiring little maintenance. Because Insulated deep groove ball bearings are the most widely used bearing type, they are available from CoatMaster in many designs, variants and sizes. For railway applications, single row Electrically Insulated deep groove ball bearings are used in traction motors, mainly as the locating bearing in combination with a non-locating cylindrical roller bearing. Many modern traction motor designs require electrical insulation.

Electrically insulated Rolling Bearings 6318 M/P65HS0VL0241
Principal dimensions 90×190×43mm
Weight 5.8 kg
Basic dynamic load rating-C 151kN
Basic static load rating-Co 108kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 4800 r/min
Electrically Insulated Deep Groove Ball Bearing 6318 M/P65HS0VL0241 as a Preventive Measure
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

Cages of  Electrically Insulated Bearing

Depending on their design, series and size, CoatMaster Electrically Insulated deep groove ball bearings are fitted with different types of cages.

The lubricants generally used for rolling bearings do not have a detrimental effect on cage properties. However, some synthetic oils and greases with a synthetic oil base and lubricants containing a high proportion of EP additives, when used at high temperatures, can have a detrimental effect on polyamide cages.

Radial internal clearance of Electrically Insulated Bearing

CoatMaster Electrically Insulated deep groove ball bearings are manufactured with Normal radial internal clearance as standard. Most of the bearings are also available with C3 radial internal clearance. For traction motor applications, clearances much greater than C4 or C5 are used because of the tighter fits. Bearings with internal clearances not to standard can be supplied on request.

XRB is the China bearing exporter & supplier, it can supply 6318 M/P65HS0VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6318-M-J20AA-C3 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
