Detailed Product Description
|Designation:||6313 M/C5S0VL0241||Coating:||Aluminium Oxide Coating|
|Electrical Resistance:||Voltages Up To 3000 V DC||Cage:||Brass|
|Weight:||2.5 kg||Feature:||High temperature|
Electric Insulated Deep Groove Ball Bearing 6313 M/C5S0VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.
The railway industry never stands still and improvements and performance are developed daily. Together with our customers, we are always aware of the latest trends in the market place and we are committed to staying completely up-to-date to make sure that the very latest developments are integrated into new products.
Drive systems, such as gearboxes and traction motors for railway trains, have to be powerful, environmentally friendly, cost-effective and require very low needs for maintenance. These requirements are much more stringent than those in many other industries, because of the weight of railway vehicles and the long service intervals for high speed trains.
Features and Benefits of CoatMaster Electrically Insulated rolling Bearings
- two functions in one solution:
– a bearing function
– electrical insulation
- virtually eliminates premature bearing failures caused by stray electric currents
- increases machine uptime
- reduces maintenance costs
- provides an economical solution when compared with other insulation solutions
- global availability.

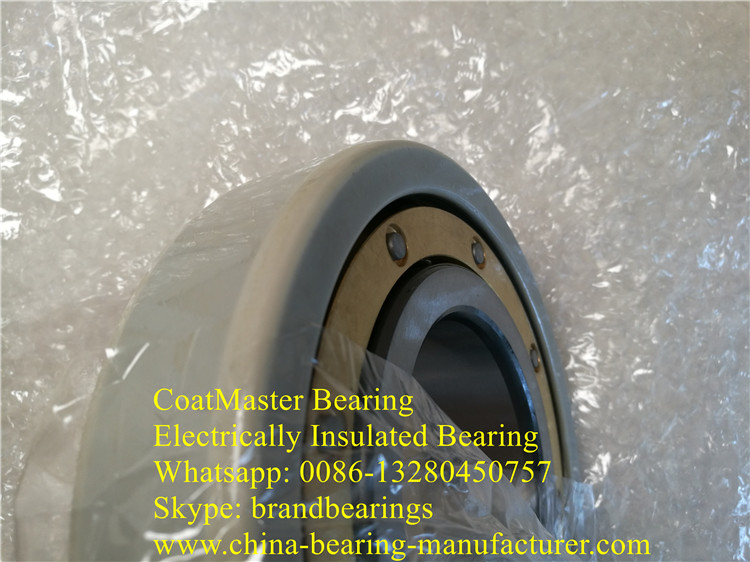

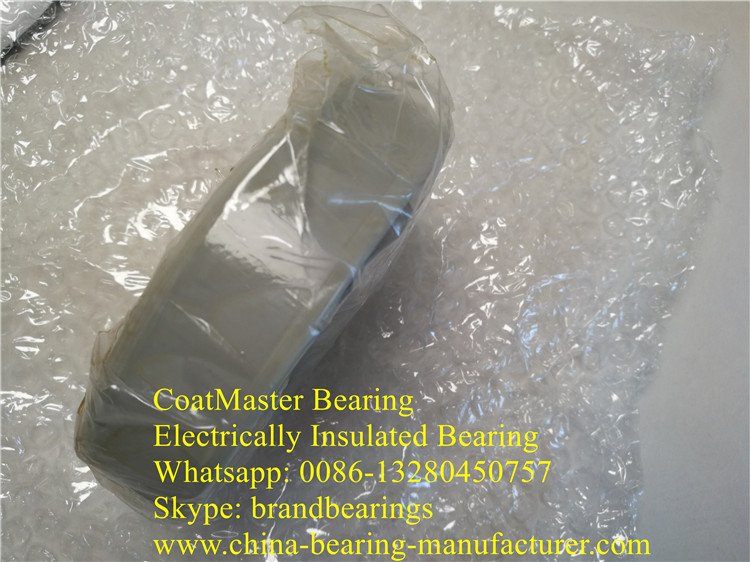

Electrically insulated Rolling Bearings 6313 M/C5S0VL0241

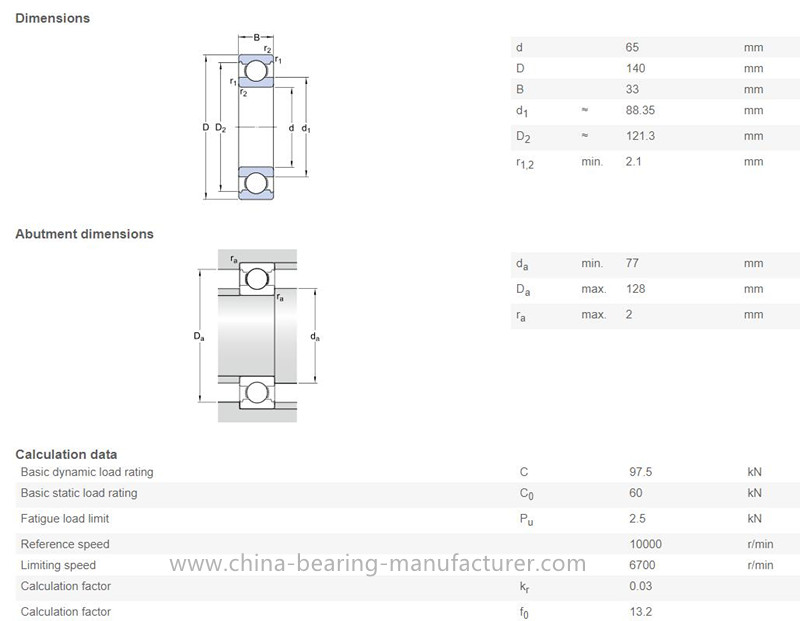

Principal dimensions 65×140×33mm
Weight 2.5 kg
Basic dynamic load rating-C: 97.5kN
Basic static load rating-Co: 60kN
Fatigue load limit-Pu: 0 kN
Reference speed: 0 r/min
Limiting speed: 6700 r/min
Electrically Insulated Rolling Bearing as a Preventive Measure
As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.
Electric Insulated Bearing / INSOCOAT bearings:
- are designed to prevent electric current from passing through the bearing
- have the external surfaces of either their inner or outer ring coated with an insulating aluminium oxide layer, by applying a sophisticated plasma-spray process for an outstanding quality finish
- are a very cost-effective solution compared with other insulation methods.
XRB is the China bearing exporter & supplier, it can supply 6313 M/C5S0VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6313-M-J20AA-C5 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
