Detailed Product Description

Designation: NU328 ECM/C4VA301 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 140×300×60 mm
Weight: 23 kg Application: Electric Traction Motors

Innovative Technology China Electrically Insulated Rolling Bearing NU328 ECM/C4VA301 Drive System Bearings

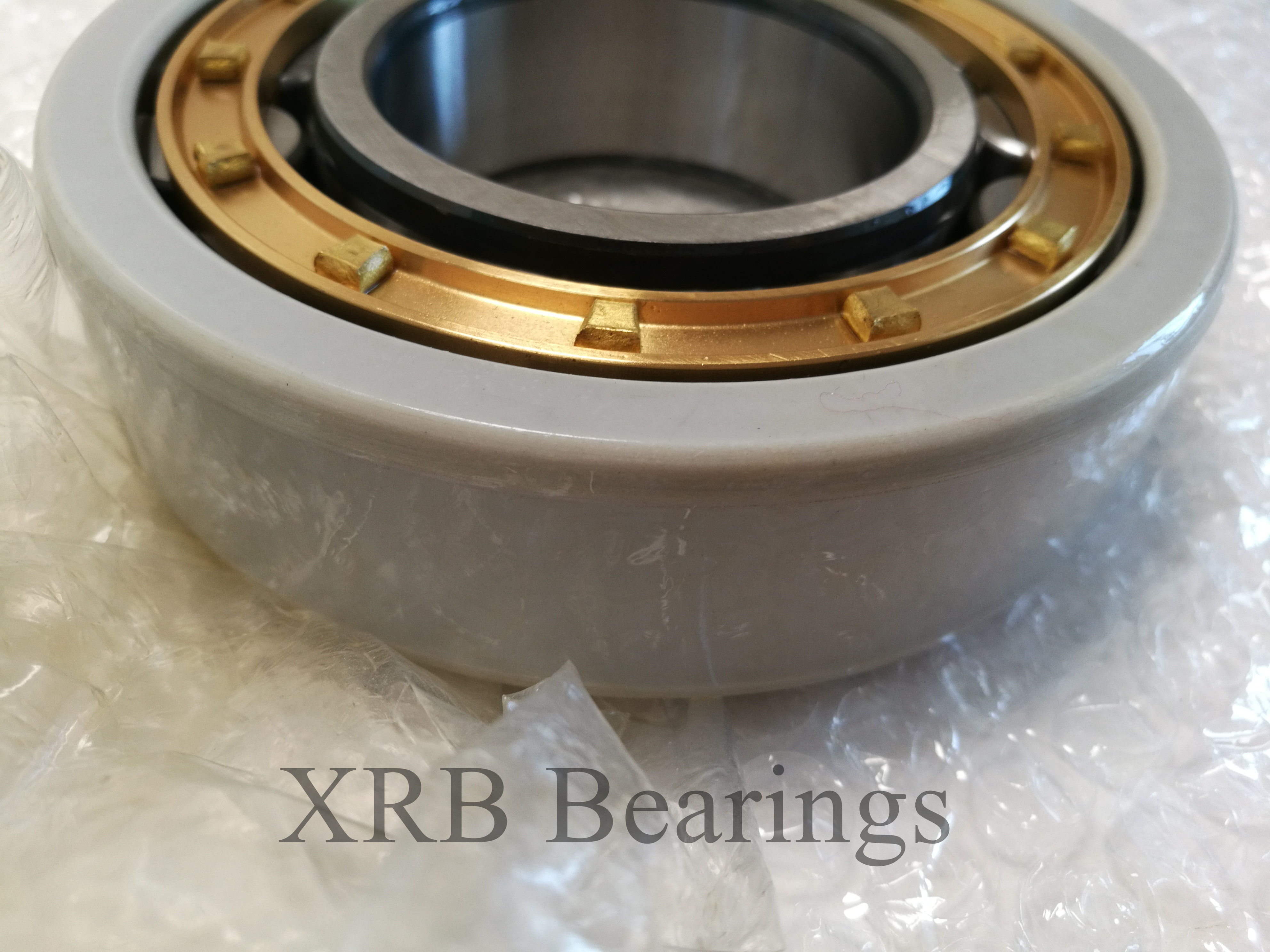

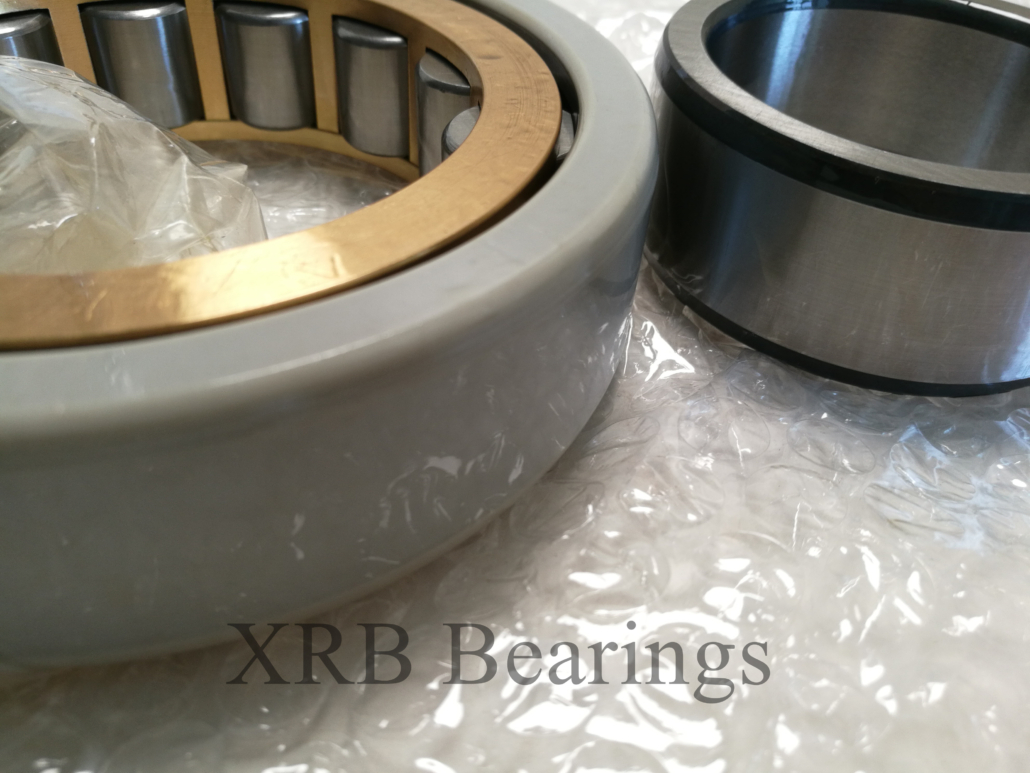

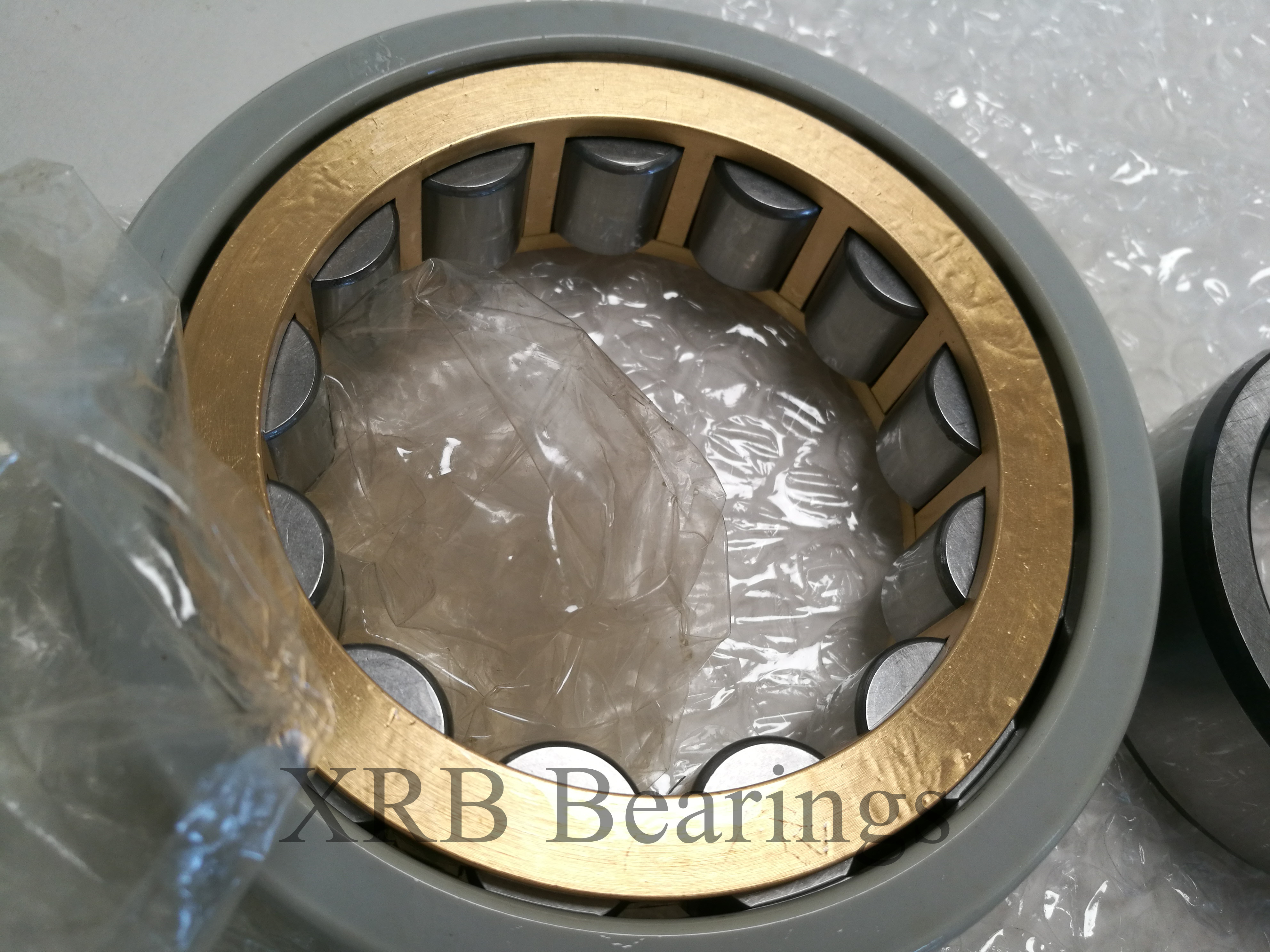

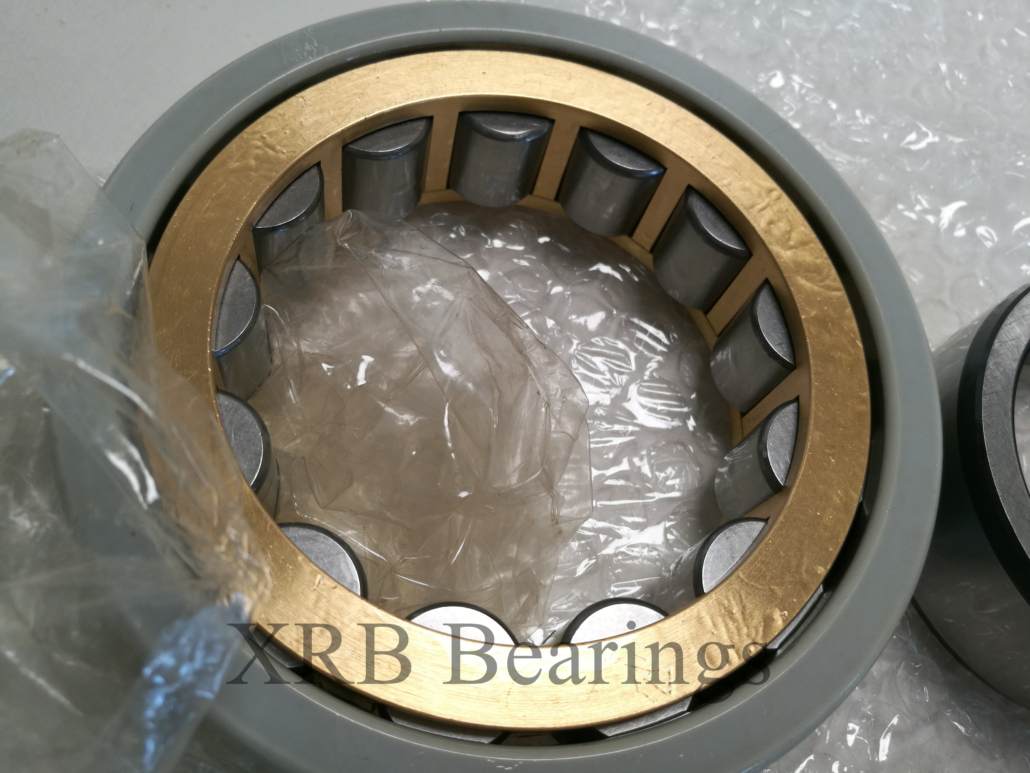

Electric Insulated Cylindrical Roller Bearing NU328 ECM/C4VA301 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel NU328 ECM/C4 Cylindrical Roller Bearing.

Electrically Insulated Bearing NU328 ECM/C4VA301 can protect the machine to be exposed to electrical current. In a worst-case scenario, this can damage raceways and rolling elements, which in turn, causes the motor or generator to fail prematurely and without warning. On top of the extra expenses incurred for repairs, this also means additional costs caused by machine downtime and the resulting production losses.

Loads of Electrically Insulated Rolling Bearing

In order to select the best bearing for a particular application, all operational loads should be taken into account. In addition to the weight of the components, the forces created when power is transmitted, such as those listed below, should also be considered:

  • the magnetic pull resulting from asymmetrical air gaps
  • dynamic forces due to misalignment
  • out of balance forces
  • forces due to pitch errors in gears
  • thrust loads

Loads can be radial, axial or a combination of the two. In cases where there are heavy loads,

Roller bearings are typically used. Ball bearings are generally used for lighter loads. Certain bearings, such as NU328 ECM/C4VA301 cylindrical roller bearings, accommodate radial loads only while other bearings, such as angular contact ball bearings, are better suited for combined loads.

Electrically insulated Rolling Bearings NU328 ECM/C4VA301
Principal dimensions 140×300×60mm
Weight: 23 kg
Basic dynamic load rating-C: 780kN
Basic static load rating-Co: 830kN
Fatigue load limit-Pu: 88 kN
Reference speed: 2400 r/min
Limiting speed: 2800 r/min

The Electrically Insulated NU328 ECM/C4VA301 Cylindrical Roller Bearing adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing, Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings . The process is constantly being improved. Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC. Special spraying process can form a layer with uniform thickness and strong adhesion , After further processing, it can be protected from moisture and humidity.

XRB is the China bearing manufacturer & exporter & supplier, it can supply CoatMaster NU328 ECM/C4VA301 Electrically Insulated Cylindrical Roller bearing, Our large quantity Electrically Insulated Cylindrical Roller bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG NU328 M-J20A-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.

More questions, please contact our sales team.
