Detailed Product Description

Designation:  BB1-7009 insulated bearing Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 130×280×58 mm
Weight: 0.5 kg Application: Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing BB1-7009 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

Electric Insulated Deep Groove Ball Bearing BB1-7009 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel Deep Groove Ball Bearing.

Principle bearing types for traction motor applications

  • cylindrical roller bearings
  • electrically insulated INSOCOAT

Cylindrical roller bearings

  • electrically insulated INSOCOAT deep groove ball bearings
  • hybrid cylindrical roller bearings with ceramic rollers
  • hybrid deep groove ball bearings with ceramic balls
  • traction motor bearing units based on cylindrical roller bearings and deep groove ball bearings
  • Sensorised traction motor bearing unit
  • Regreasable traction motor bearing unit


Electrically Insulated Rolling Bearing as a Preventive Measure

As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

The Electrically Insulated Bearing adopts the special spraying process, spraying the high quality coating on the outer surface of the bearing, Strong adhesion between film and substrate, Good insulation performance, avoiding the electric corrosion effect of the induced current on the bearing, Prevent current from damage for grease, rolling elements and raceways, Improve the service life of bearings . The process is constantly being improved. Among Electrically Insulated Bearing, there is a 100 μm thick coating on the outer or inner ring surface that can withstand voltages up to 1000 V DC. Special spraying process can form a layer with uniform thickness and strong adhesion , After further processing, it can be protected from moisture and humidity.

XRB is the China bearing manufacturer & exporter & supplier, it can supply BB1-7009 insulated bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG insulated Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.

6310 M/C4VL0241 Electrically Insulated Deep groove Bearings for Traction Motor

Detailed Product Description

Place of Origin: China
Brand Name: EASIER
Certification: ISO9001
Model Number: 6310 M/C4VL0241

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box and then put in Carton or Wooden Case
Delivery Time: 5 days after confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 Pcs/Month

Detailed Product Description

Designation: 6310 M/C4VL0241 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 50×110×27 mm
Weight: 1.3 kg Application: Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

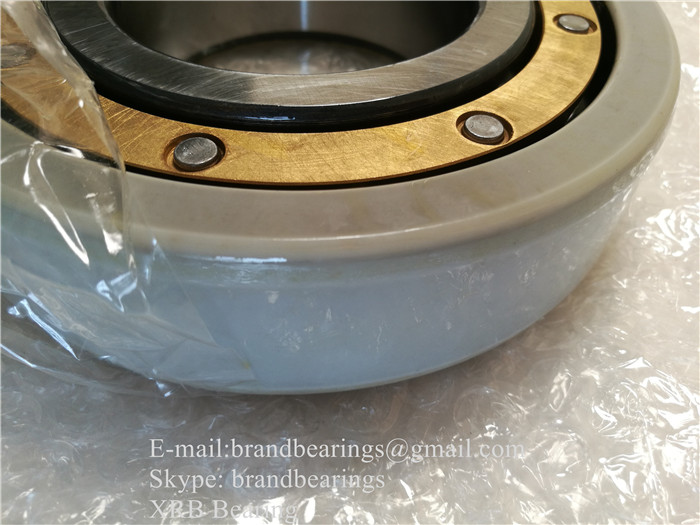

Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6310 M/C4 Deep Groove Ball Bearing.

Features and Benefits of FAG Electrically Insulated rolling Bearings

• Oxide ceramic coatings (J20…) provide a high level of insulation. Plasma spraying is used to apply these coatings to the bearing surfaces
• Thanks to a special sealant, the J20AA coating retains its insulating properties even in a damp environment. The resulting oxide ceramic coating is very hard, wear resistant, and a good thermal conductor.
• The external dimensions of the current-insulated rolling bearings are in accordance with DIN 616 (ISO 15). This means that they are interchangeable with standard bearings.
• For special applications, such as those with a rotating outer ring, we recommend using an inner ring coated with J20C.
• Starting with the 62-series and up, coated deep-groove ball bearings are available in both open and sealed versions (with lip seals on one or both sides). This enables the user to also benefit from the advantages offered by for-life lubrication.

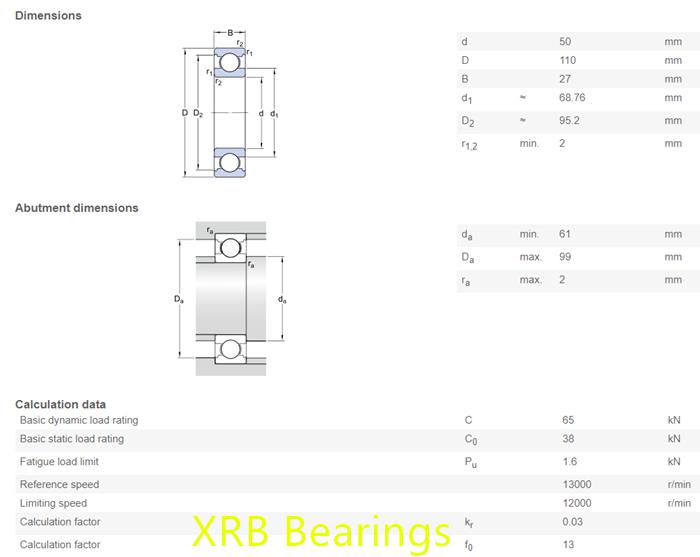

Electrically insulated Rolling Bearings 6310 M/C4VL0241
Principal dimensions 50×110×27mm
Weight 1.3 kg
Basic dynamic load rating-C 65kN
Basic static load rating-Co 38kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 8500 r/min

Electrically Insulated Rolling Bearing as a Preventive Measure

As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

6310 M C4VL0241 Electrically Insulated Deep groove Bearings for Traction Motor 04

The railway industry never stands still and improvements and performance are developed daily. Together with our customers, we are always aware of the latest trends in the market place and we are committed to staying completely up-to-date to make sure that the very latest developments are integrated into new products.

Drive systems, such as gearboxes and traction motors for railway trains, have to be powerful, environmentally friendly, cost-effective and require very low needs for maintenance. These requirements are much more stringent than those in many other industries, because of the weight of railway vehicles and the long service intervals for high speed trains.

XRB is the China bearing exporter & supplier, it can supply 6310 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6310-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.

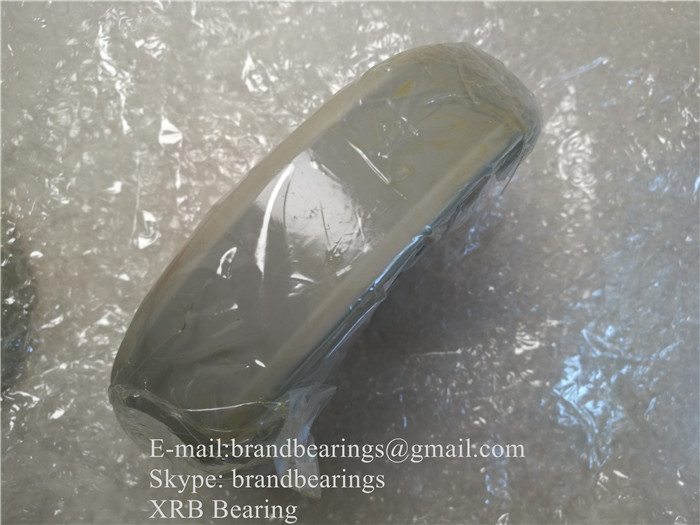

6310 M/C4VL0241 Electrically Insulated Deep groove Bearings for Traction Motor

Detailed Product Description

Place of Origin: China
Brand Name: EASIER
Certification: ISO9001
Model Number: 6310 M/C4VL0241

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Single box and then put in Carton or Wooden Case
Delivery Time: 5 days after confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 Pcs/Month

Detailed Product Description

Designation: 6310 M/C4VL0241 Coating: Aluminium Oxide Coating
Electrical Resistance: Voltages Up To 3000 V DC Cage: Brass
Cleance: C4 Dimension: 50×110×27 mm
Weight: 1.3 kg Application: Electric Traction Motors

Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, electrical insulated bearing can reduce the number of failures and improve the machine uptime, reduce the cost of maintenance.

Electric Insulated Deep Groove Ball Bearing 6310 M/C4VL0241 consist of one inner ring, one outer ring with Aluminuim Oxide Coating, and one piece of machined brass cage, steel balls, Its dimension are the same with normal chrome steel 6310 M/C4 Deep Groove Ball Bearing.

Features and Benefits of FAG Electrically Insulated rolling Bearings

• Oxide ceramic coatings (J20…) provide a high level of insulation. Plasma spraying is used to apply these coatings to the bearing surfaces
• Thanks to a special sealant, the J20AA coating retains its insulating properties even in a damp environment. The resulting oxide ceramic coating is very hard, wear resistant, and a good thermal conductor.
• The external dimensions of the current-insulated rolling bearings are in accordance with DIN 616 (ISO 15). This means that they are interchangeable with standard bearings.
• For special applications, such as those with a rotating outer ring, we recommend using an inner ring coated with J20C.
• Starting with the 62-series and up, coated deep-groove ball bearings are available in both open and sealed versions (with lip seals on one or both sides). This enables the user to also benefit from the advantages offered by for-life lubrication.

Electrically insulated Rolling Bearings 6310 M/C4VL0241
Principal dimensions 50×110×27mm
Weight 1.3 kg
Basic dynamic load rating-C 65kN
Basic static load rating-Co 38kN
Fatigue load limit-Pu 0 kN
Reference speed 0 r/min
Limiting speed 8500 r/min

Electrically Insulated Rolling Bearing as a Preventive Measure

As a rule, it is very difficult to eliminate the causes of bearing voltages that are induced by the motor. Nevertheless, it is possible to avoid damage to the bearing, if the flow of current can either be prevented or at least significantly reduced. Many types of Electrically Insulated Bearing are available today for this very purpose.

6310 M C4VL0241 Electrically Insulated Deep groove Bearings for Traction Motor 04

The railway industry never stands still and improvements and performance are developed daily. Together with our customers, we are always aware of the latest trends in the market place and we are committed to staying completely up-to-date to make sure that the very latest developments are integrated into new products.

Drive systems, such as gearboxes and traction motors for railway trains, have to be powerful, environmentally friendly, cost-effective and require very low needs for maintenance. These requirements are much more stringent than those in many other industries, because of the weight of railway vehicles and the long service intervals for high speed trains.

XRB is the China bearing exporter & supplier, it can supply 6310 M/C4VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find FAG 6310-M-J20AA-C4 Bearing, the other type and brand insulated deep groove ball bearing, insocoat tapered roller bearing, Current-Insulated Bearings.
