Insulated Cylindrical Roller Bearing Manufacturer replace SKF, FAG, NSK, NKE,KOYO Brand

Insulated cylindrical roller bearing mean the same design with normal standard cylindrical roller bearing with coated insulated materials on the inner ring or outer ring. The cylindrical roller and raceway of the cylindrical roller bearing are linear contact bearings. Load capacity, mainly bear radial load. The friction between the rolling element and the retaining edge of the ring is small, which is suitable for high-speed rotation. The inner and outer rings of cylindrical roller bearings can be separated. According to whether the rings have ribs or not, they can be divided into single row cylindrical roller bearings such as NU, NJ, NUP, N, NF, and double row cylindrical roller bearings such as NNU and NN series.

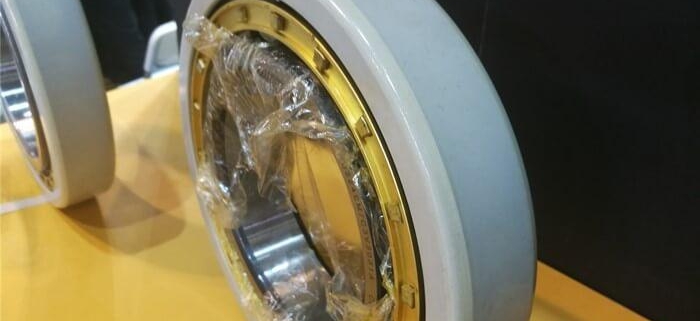

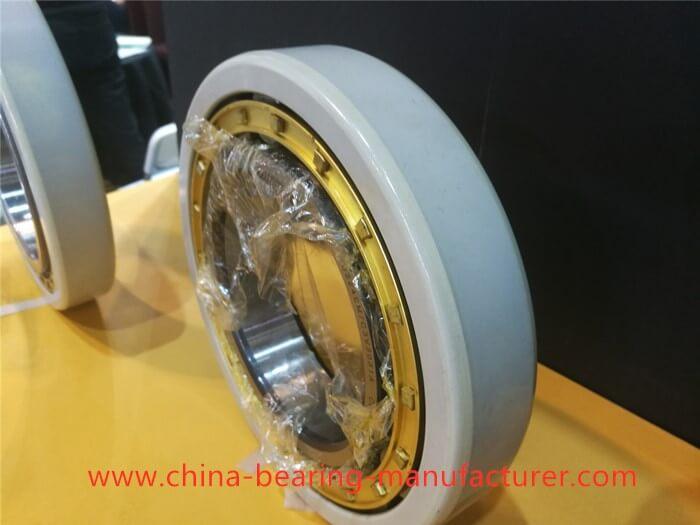

Cylindrical roller insulated bearings are designed to prevent current from passing through the bearing. On the outer surface of the inner ring of the bearing or the outer surface of the outer ring, a layer of aluminum oxide coating with insulating properties is sprayed through a complex plasma spraying process, which can avoid the electric corrosion effect of the induced current on the bearing and prevent the current from affecting the grease and grease. Damage caused by rolling elements and raceways can increase the service life of the bearing. The external dimensions and basic technical characteristics of cylindrical roller insulated bearings are the same as ordinary cylindrical roller bearings, so they can be interchanged each other.



Designation Principal dimensions Basic load ratings Fatique load limit Speed ratings Weight
Cylindrical roller bearings mm mm mm dynamic static Reference speed Limiting speed kg
d D B C[kN] C0[kN] [r/min] [r/min]
NU 1010 ECP/C3VL0241 50 80 16 46.8 56 6.7 9500 9500 0.27
NU 210 ECM/C3VL0241 50 90 20 73.5 69.5 8.8 8500 9000 0.48
NU 310 ECM/C3VL0241 50 110 27 127 112 15 6700 8000 1.36
NU 1011 ECP/C3VL0241 55 90 18 57.2 69.5 8.3 8500 8500 0.4
NU 1011 ECML/C3VL0241 55 90 18 57.2 69.5 8.3 8500 13000 0.4
NU 211 ECM/C3VL0241 55 100 21 96.5 95 12.2 7500 8000 0.78
NU 311 ECM/C3VL0241 55 120 29 156 143 18.6 6000 7000 1.75
NU 1012 ML/C3VL0241 60 95 18 37.4 44 5.3 8000 13000 0.48
NU 1012 ECP/C3VL0241 60 95 18 58.3 73.5 8.8 8000 8000 0.48
NU 212 ECM/C3VL0241 60 110 22 108 102 13.4 6700 7500 0.1
NU 312 ECM/C3VL0241 60 130 31 173 160 21.2 5600 6700 2.2
NU 1013 ECP/C3VL0241 65 100 18 62.7 81.5 9.8 7500 7500 0.45
NU 213 ECM/C3VL0241 65 120 23 122 118 15.6 6300 6700 1.3
NU 313 ECM/C3VL0241 65 140 33 212 196 25.5 5300 6000 2.63
NU 1014 ECM/C3VL0241 70 110 20 76.5 93 12 7000 7000 0.7
NU 1014 ECP/C3VL0241 70 110 20 76.5 93 12 7000 7000 0.7
NU 214 ECM/C3VL0241 70 125 24 137 137 18 6000 6300 1.4
NU 314 ECM/C3VL0241 70 150 35 236 228 29 4800 5600 3.2
NU 1015 M/C3VL0241 75 115 20 58.3 71 8.5 6700 6700 0.75
NU 215 ECM/C3VL0241 75 130 25 150 156 20.4 5600 6000 1.5
NU 315 ECM/C3VL0241 75 160 37 280 265 33.5 4500 5300 4
NU 315 ECP/VL0241 75 160 37 280 265 33.5 4500 5300 4
NU 1016 ECM/C3VL0241 80 125 22 99 127 16.3 6000 6000 1.05
NU 216 ECM/C3VL0241 80 140 26 160 166 21.2 5300 5600 1.9
NU 316 ECM/C3VL0241 80 170 39 300 290 36 4300 5000 4.6
NU 1017 M/C3VL0241 85 130 22 68.2 86.5 10.8 6000 6000 1.1
NU 217 ECM/C3VL0241 85 150 28 190 200 25 4800 5300 2.3
NU 317 ECM/C3VL0241 85 180 41 340 335 41.5 4000 4800 5.4
NU 1018 M/C3VL0241 90 140 24 80.9 104 12.7 5600 5600 1.4
NU 218 ECM/C3VL0241 90 160 30 208 220 27 4500 5000 2.8
NU 318 ECM/C3VL0241 90 190 43 365 360 43 3800 4500 6.3
NU 1019 ML/C3VL0241 95 145 24 84.2 110 13.2 5300 5300 1.4
NU 219 ECM/C3VL0241 95 170 32 255 265 32.5 4300 4800 2.9
NU 319 ECM/C3VL0241 95 200 45 390 390 46.5 3600 4300 7.3
NU 1020 M/C3VL0241 100 150 24 85.8 114 13.7 5000 5000 1.5
NU 220 ECM/C3VL0241 100 180 34 285 305 36.5 4000 4500 4.05
NU 320 ECM/C3VL0241 100 215 47 450 440 51 3200 3800 8.7
NU 1022 M/C3VL0241 110 170 28 128 166 19.3 4500 4500 2.3
NU 222 ECM/C3VL0241 110 200 38 335 365 42.5 3600 4000 5.7
NU 322 ECM/C3VL0241 110 240 50 530 540 61 3000 3400 12
NU 1024 M/C3VL2071 120 180 28 134 183 20.8 4000 4000 2.7
NU 224 ECM/C3VL0241 120 215 40 390 430 49 3400 3600 6.7
NU 324 ECM/C3VL0241 120 260 55 610 620 69.5 2800 3200 14.9
NU 1026 M/C3VL2071 130 200 33 165 224 25 3800 3800 3.9
NU 226 ECM/C3VL2071 130 230 40 415 455 51 3200 3400 7.7
NU 326 ECM/C3VL2071 130 280 58 720 750 81.5 2400 3000 18.5
NU 1028 M/C3VL2071 140 210 33 172 245 27 3600 3600 4.1
NU 228 ECM/C3VL2071 140 250 42 450 510 57 2800 3200 9
NU 328 ECM/C3VL2071 140 300 62 780 830 88 2400 2800 25.5
NU 1030 M/C3VL2071 150 225 35 194 275 30 3200 3200 5
NU 230 ECM/C3VL2071 150 270 45 510 600 64 2600 2800 12
NU 330 ECM/C3VL2071 150 320 65 900 965 100 2200 2600 31.5



Compared with ordinary insulated bearings, cylindrical roller insulated bearings have good electrical corrosion resistance. By integrating insulation properties into the bearings, insulated bearings can improve reliability by eliminating electrical corrosion problems and extend the uptime of equipment. Cylindrical roller insulated bearings adopt a unique sealing process to encapsulate the bearings, which can be protected from humidity and moisture during use. The aluminum oxide coating on the surface has a minimum resistance of 200MΩ and can withstand a voltage of up to 3000V DC.

Features and benefits of Insulated cylindrical roller bearing
— Protection against electrical erosion
With insulating properties integrated into the bearing, INSOCOAT bearings can improve reliability and increase machine uptime by virtually eliminating the problem of electrical erosion.
— High electrical resistance
The aluminium oxide coating provides a minimum electrical resistance of 200 MΩ and can withstand voltages up to 3 000 V DC.
— Consistent electrical performance
Plasma-spray coatings are normally hygroscopic and, therefore, vulnerable to penetration caused by condensation. To protect against this effect, INSOCOAT bearings are treated with a unique sealant.

Cylindrical roller insulated bearings are widely used because of their characteristics:

— Power industry: Cylindrical roller insulated bearings for generators; wind generators, hydroelectric generators, and thermal generators.
— Railway industry: cylindrical roller insulated bearings for traction motors of diesel locomotives, used in locomotives, etc.
— Machinery and metallurgy industry: Insulated bearings for high-power inverter motors: used in cranes, textile machines, printing machines, iron-making equipment, steel-making equipment, rolling equipment, cutting equipment, coking equipment, smelting equipment, etc.
— Mining machinery industry: insulated bearings for high-power and high-voltage motors, used in mining machines, coal separators, coal washers, crushers, ball mills, grinders, sand mills
— Petrochemical industry: insulated bearings for high-power and high-voltage motors: used in compressors, etc.
